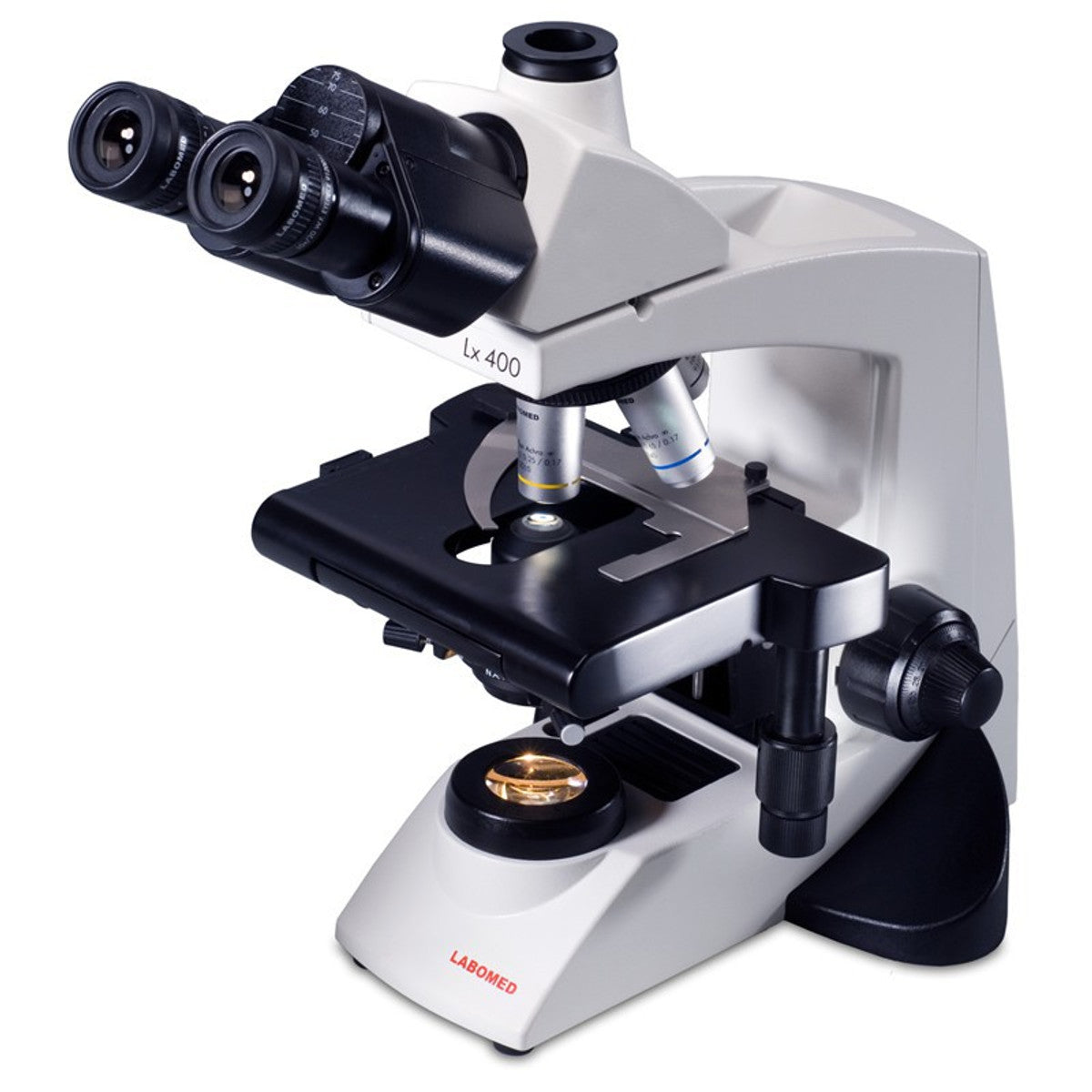

Labomed Lx400 Trinocular Live Blood Cell Analysis Microscope with Dark Field Kit
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Designed for scaleability, the Lx 400 can take on a broad range of applications and curriculum requirements. Reflecting innovations in optical and illumination design as well as mechanical breakthroughs, the Lx 400 delivers unparalleled performance to price value to an expanding list of delighted users.
Lx 400 Advantages:
RP series Infinity Corrected Plan Achromatic objectives and Extra Widefield focussable eyepieces provide large and accurate images at every turn. The system is modular for digital, fluorescent, and interference contrast applications.
Highly efficient Halogen (approx. 2,000 hours bulb life) or eco friendly rechargeable LED (approx. 100,000 hours bulb life) light sources promise a bright and even field of illumination.
A fluid focus drive and low positioned X/Y slide scanning controls promise comfort. A Rackless stage ensures user safety and maximum workspace utility.
Product Specifications
| Stand | Single mold aluminum stand with hand rests for enhanced comfort and stability |
| Viewing Bodies | Siedentopf Trinocular head, 30° inclined, 360° rotatable, Interpupillary distance 48 - 75mm |
| Eyepiece | Widefield 10x/20mm focussable eyepieces with foldable rubber eye guards, antifungal. Accepts 26mm reticle. |
| Nosepiece | Reverse angle quadruple nosepiece (Ball bearing type) with click stops and rubber grip |
| Objectives | RP series infinity corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal |
| Mechanical stage | Rackless X axis, double plate stage size 200 x 160mm, X/Y travel range 78mm x 54mm. Low drive right hand movement controls. Hard coated surface for scratch resistance. Double specimen holder clip |
| Condenser | Sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue daylight filter. Rack and pinion movements on stainless steel guides |
| Dark Field Kit | RP series Infinity corrected 100x (spring, oil, IRIS) Plan-Achromatic objective Dark field condenser NA 1.25, oil |
| Focusing | Coaxial coarse and fine focusing on ball drive system for smooth operation |
| Illumination | LED (built in rechargeable battery) illumination with variable illumination control. Up to 100,000 hours of LED life |
| Electrical | Universal input 100V - 240V AC, 50/60Hz. Built-in voltage stabilizer |
| Warranty | 5-year manufacturer warranty. |
| Certification | UL, CE, ISO 9001:2000 and ISO 13485:2003 |
