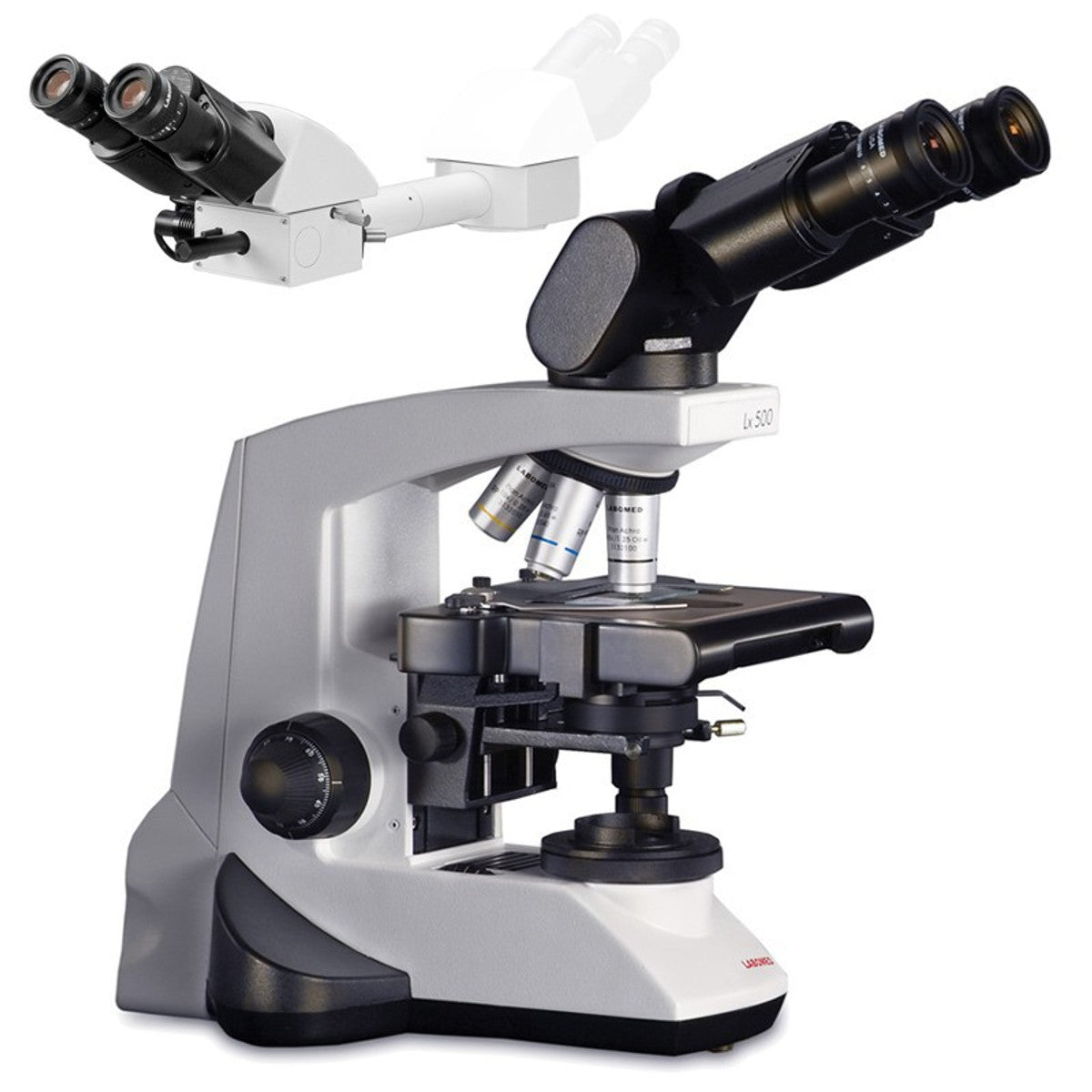

Labomed Lx500 Binocular LED Dual View Teaching Microscope is the outcome of world-class technologies and design innovations. Highly modular and accessory friendly, the Lx 500 is a versatile and fully extendable clinical microscope that boasts graceful symmetry and performance thanks to its ergonomic and optical features.
- RP2 series Infinity Corrected Super Plan optics provide a virtually flat field of view at all magnifications, with pristine contrast and color fidelity. Proprietary MaxLite coatings further enhance optical performance.
- With an optional ergonomic articulating head, viewing angle will conform to the user to provide a more comfortable seated posture.
- A Rackless stage ensures safety and maximizes workspace. A ceramic surface promises scratch resistance during use.
- True Kohler illumination and a standard flip-top condenser guarantee superb contrast from 2.5x to 100x magnification. Rechargeable LED (approx. 100,000 hours).
Product Specifications
| Stand | Single mold sturdy stand with anti rust materials. Extended base for better stability |
| Main Viewing Body | Siedentopf Binocular 30° inclined, 360° rotatable, Inter-pupillary distance 47 - 75mm with height adjustment |
| Dual View Attachment | Dual view bridge with Binocular Observation Head, WF 10x/20mm eyepieces, illuminated LED pointer and 100V-240V AC power adapter |
| Eyepiece | Focusable 10x/22mm widefield eyepieces with foldable eyeguards, antifungal coated |
| Nosepiece | Reverse angle quintuple nosepiece (Ball bearing type) with click stops and rubber grip |
| Objectives | RP2 series Infinity Corrected DIN Plan Achromatic objectives 4x, 10x, 40x (spring loaded), 100x (spring loaded, oil), antifungal coated |
| Mechanical stage | Rackless X-axis Ceramic double plate stage, size 200 x 160mm, X/Y travel range 76mm x 50mm. Double specimen holder |
| Condenser | Flip-top sub stage Abbe condenser NA 1.25 with aspheric lens. Iris diaphragm with blue day light filter. Rack and pinion movements on stainless steel guides |
| Focusing | Co-axial coarse and fine focusing on gear systems for smooth operation. Fine adjustment 0.3mm/rotation |
| Illumination | Koehler LED illumination with intensity, built-in rechargeable battery for cordless operation. LED lamp life is up to 100,000 hours |
| Electrical | Universal input 100V - 240V AC, 50/60 Hz. Built-in voltage stabilizer |
| Warranty | 5-year manufacturer warranty. |
| Certification | UL, CE, ISO 9001:2000 and ISO 13485:2003 |
