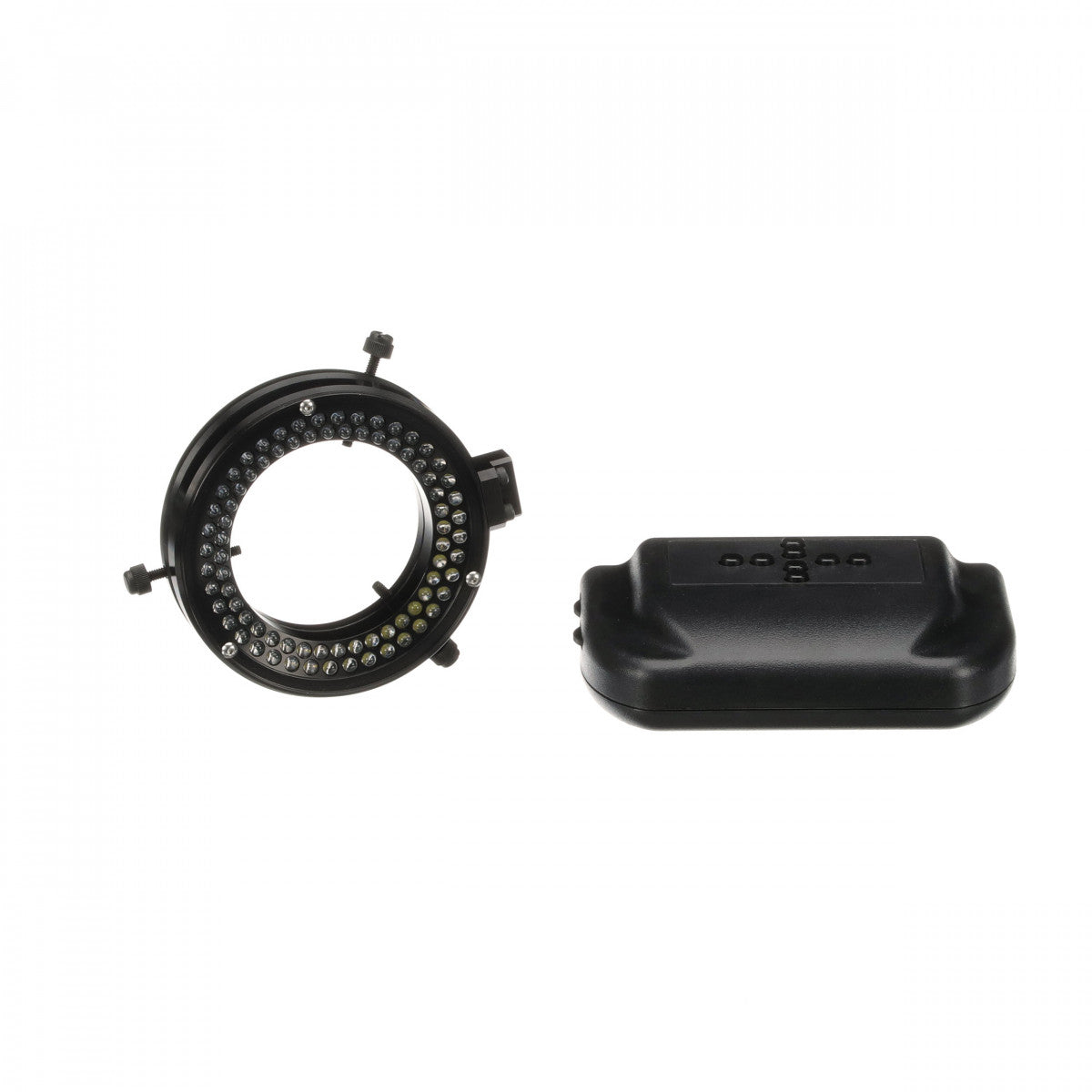

Accu-Scope LED580 UV/Daylight Quadrant Ring Illuminator
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Product Overview
The ACCU-SCOPE LED580 UV/daylight quadrant illuminator supports switchable uv and white reflected lighting for inspection.
Key Features
- Adjustable segmented LED lighting
- Designed for reflected-light inspection
- Specifications and accessories detailed below
What Is This Product Used For?
Switchable UV and white reflected lighting for inspection.
Technical Specifications
| LEDs | 80 (40 UV-A, 40 white) |
|---|---|
| Inner diameter | 66 mm |
| White color temperature | 6500 K |
| Control | Independent inner/outer quadrants |
Compatibility & Ordering
Confirm mounting dimensions, microscope configuration, and required accessories before ordering. For UV models, use appropriate eye and skin protection and follow laboratory safety procedures.
Manufacturer Resources
ACCU-SCOPE manufacturer resources
Additional Product Details
Specifications
- MADE IN THE USA!
- Silent, vibrant-free operation
- 66mm inner diameter
- 80 powerful LEDs provide consistent even illumination; 40 UV-A LEDs in the inner ring, 40 white LEDs in the outer ring
- 8-button inner and outer ring segment controller; control each quadrant of each LED ring independently
- Color temperature of 6500K
- Lamp life: 50,000 hours
- Universal power input: 100-240 VAC 50/60Hz
- Optional polarizer/analyzer available
- Shipping size 13x11x7 inches
- Shipping weight 3lbs
