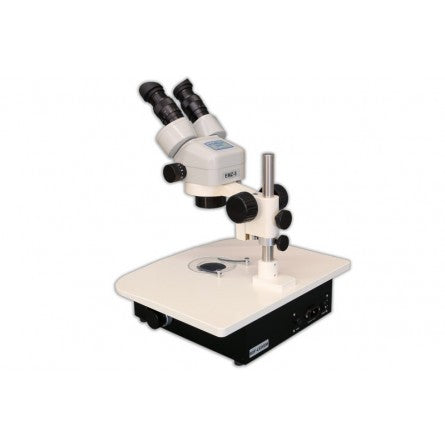

EMZ-5: Microscope Head
The EMZ-5 body delivers sharp, high-contrast images and an excellent zoom range of 6.5:1 that provides exceptionally high resolution images all throughout the zoom range. The EMZ-5 employs Greenough optics, for improved image flatness and contrast. As a result images are brighter and more distinct even at the periphery of the field of view. With the large zoom range, the EMZ-5 offers high resolution observation in precision-oriented semi-conductor, medical device and routine inspection. In addition to it’s compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application.

MA502: Eyepieces
Included is the MA502 Super Widefield Eyepiece 10X (pair) with 25mm reticle mount Field No. 23.0, Eye Relief 16.0, Focal Length 25.0

F: Focus Block
Focusing holder with rack and pinion mount that allows smooth, precise focusing over 55mm of travel. Coarse focus mechanism incorporates a slip clutch and tension adjustment. Fits 20mm diameter, 71mm long mounting post. The 84.2mm diameter opening accepts all EM Series stereo bodies.

BD-M-LED: Stand
BD-M-LED is a wide surface LED Brightfield/Darkfield stand for applications that require transmitted oblique illumination or angle light is required. This is a popular stand for protein crystallography, equine or bovine embryo transfer. This specialized stand contains a reflection mirror in the base that is rotatable which allows the LED illumination to hit the sample at oblique angles. This stand is a simple and popular method for rendering unstained and transparent specimens clearly visible, small aquatic organisms, oocytes, have refractive index ranging from 1.4-1.2 which has a negligible difference from their surrounding aqueous medium. This type of specimens are ideal candidates for observation with darkfield illumination techniques. The mirror can also slide forward and back to provide maximum light angle control. There is a locking ring once a desired angle is reached.

Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 6.5:1
Zoom Range: 0.7x - 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x - 45x  (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm - 5.1mm
Working distance: 93mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm - 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x - 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 34mm - 251mm (With auxiliary lenses and eyepieces)
Mounting: Fits 84.5mm Diameter Focus Holders
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
