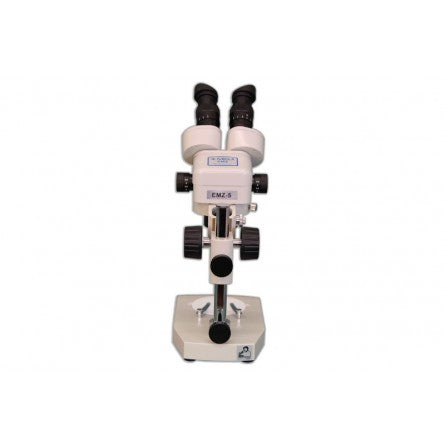

Meiji EMZ-5 Stereo Microscope with Basic Pole Stand

Regular price $1,343.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

EMZ-5: Microscope Head
The EMZ-5 body delivers sharp, high-contrast images and an excellent zoom range of 6.5:1 that provides exceptionally high resolution images all throughout the zoom range. The EMZ-5 employs Greenough optics, for improved image flatness and contrast. As a result images are brighter and more distinct even at the periphery of the field of view. With the large zoom range, the EMZ-5 offers high resolution observation in precision-oriented semi-conductor, medical device and routine inspection. In addition to its compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application.


MA502: Eyepieces
Included is the MA502 Super Widefield Eyepiece 10X (pair) with 25mm reticle mount Field No. 23.0, Eye Relief 16.0, Focal Length 25.0.


P: Stand
The P stand in Meiji Techno America’s basic pole stand with "F" focusing holder mounted on a plain base. It accepts our EMZ, EMT and EMF stereo microscope bodies. It is supplied with a 94.5mm diameter reversible black and white stage plate with a locking pin, two stainless steel stage clips and a 20mm diameter vertical pole. This P stand also has a MA551 attachment which is a 4" extension aluminum pillar in which gives the whole stand a height of 348mm. The P stand's compact design allows users to maximize their work area so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.


MA551: Extension Pillar
This P stand also has a MA551 attachment which is a 4" extension aluminum pillar in which gives the whole stand a height of 348mm. The P stand's compact design allows users to maximize their work area so that operation in limited space becomes possible. Since there is no built in illumination, it allows the end-user to select from a variety of incident light options from an LED ring light to a dual arm fiber optic system.

Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 6.5:1
Zoom Range: 0.7x - 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x - 45x  (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm - 5.1mm
Working distance: 93mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm - 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x - 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 34mm - 251mm (With auxiliary lenses and eyepieces)
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
Mounting: Fits 84.5mm Diameter Focus Holders
Manufacturer: MADE IN JAPAN
Warranty: LIMITED LIFETIME WARRANTY
