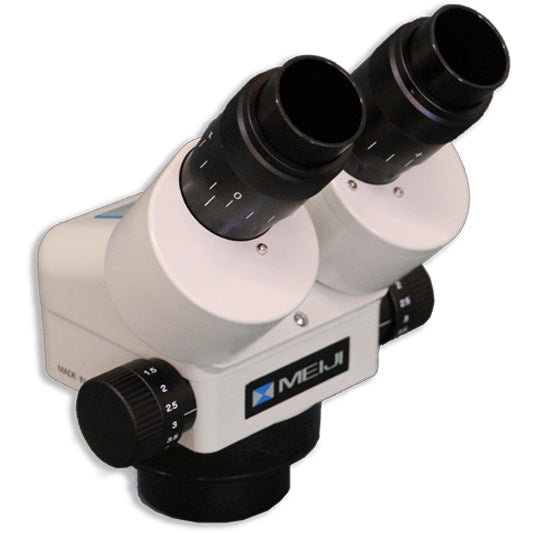

EMZ-5: Microscope Head
The EMZ-5 body delivers sharp, high-contrast images and an excellent zoom range of 6.5:1 that provides exceptionally high resolution images all throughout the zoom range. The EMZ-5 employs Greenough optics, for improved image flatness and contrast. As a result images are brighter and more distinct even at the periphery of the field of view. With the large zoom range, the EMZ-5 offers high resolution observation in precision-oriented semi-conductor, medical device and routine inspection. In addition to it’s compact design and versatility a wide variety of auxiliary lenses and stands are available to allow the user to customize their desired working distance to adapt to almost any application. Illuminated pole stand with "F" focusing holder. Provides both transmitted and incident halogen illumination with variable intensity control. Supplied with 94.5mm diameter clear glass stage plate, reversible black and white stage plate and two stage clips. Illuminators may be operated independently or simultaneously.

MA502: Eyepieces
included is the MA502 Super Widefield Eyepiece 10X (pair) with 25mm reticle mount Field No. 23.0, Eye Relief 16.0, Focal Length 25.0

PBL: Stand
The PBL Stand is Meiji Techno America’s newest 100V LED stand with a built in transmitted and incident LED illumination which may be operated independently or simultaneously. The PBL stand is equipped with a F focusing holder that has a 84.5mm round diameter opening, mounted on a cast aluminum alloy base stable stand. This stand includes a 94.5mm diameter reversible black and white stage plate (MA568), a 94.5mm clear glass stage plate (MA569) and two stainless steel stage clips (MA593). The PBL Stand is mostly used with the zoom EMZ Series, but can also be used for our turret (EMT Series) and fixed (EMF Series) stereo bodies. It is a great complement to our stereo microscopes due to the focus block’s ability to easily raise vertically if needed for special applications. A 5” extension pillar for the threaded vertical post is also available if needed to accommodate taller specimens (MA551).

Body: Binocular, Rotatable 360°, Cast Aluminum Alloy Construction
Zoom Ratio: 6.5:1
Zoom Range: 0.7x - 4.5x
Zoom Knobs Markings: 0.7, 1, 1.5, 2, 2.5, 3, 3.5, 4, 4.5
Zoom Control: Dual, graduated, bilateral
Magnification: 7x - 45x  (10x eyepieces)
Objective Lens: Brass Construction
Field of View: 32mm - 5.1mm
Working distance: 93mm
Eyetube Inclination: 45°
Eyepieces: 5x, 7.5x, 10x, 12.5x, 15x, 20x, and 30x (optional)
Interpupillary Distance: 54mm - 75mm
Dioptric Adjustment: Dual (+/- 5 diopters)
Extended Mag Range: 2.1x - 270x (With auxiliary lenses and eyepieces)
Extended Working Distances: 34mm - 251mm (With auxiliary lenses and eyepieces)
Mounting: Fits 84.5mm Diameter Focus Holders
Auxiliary Lenses: 0.3x (252mm), 0.44x (181mm), 0.5x (150mm), 0.75x (97mm), 1.5x (49mm), and 2x (34mm) (optional)
