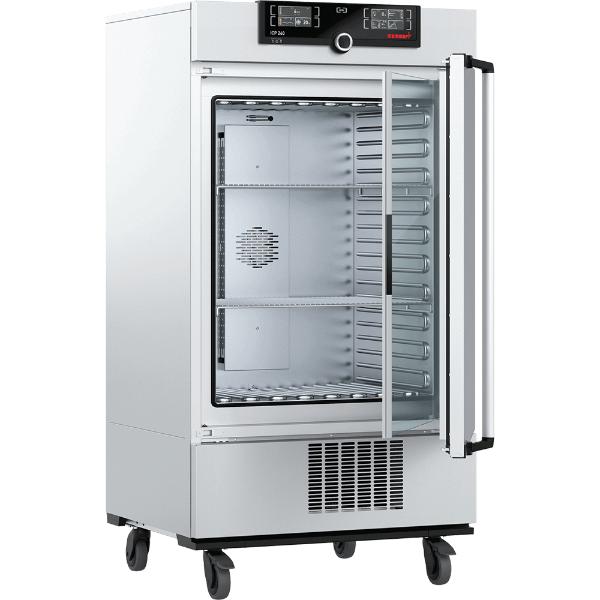

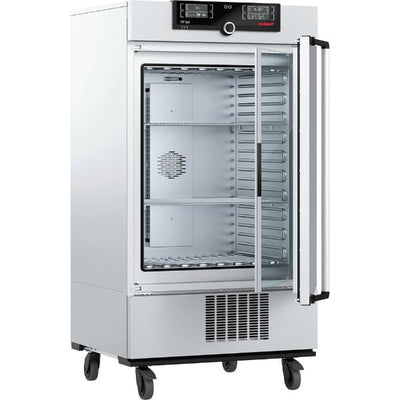

Memmert Compressor Cooled Incubators ICP260 115V (256L)

OVERVIEW

ICP 260 Memmert Compressor-cooled incubators guarantee the perfect climate and temperature for laboratory applications.

FEATURES

• STAINLESS STEEL
• ATMOCONTROL
• 2 YEAR WARRANTY
• TWINDISPLAY

Temperature Specs:

• Working temperature range:
  From -12°C up to 60°C (Optimum performance of cooling aggregate at an ambient temperature of 16°C up to 32°C. Not suitable for long-term storing at sub-zero temperatures. During permanent operation, the glass door may ice over.)
• Setting accuracy temperature:
  0.1°C
• Temperature:
  2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value

Heating Concept:

• Air Jacket:
  Air jacket heating system for gentle all-around heating
• Heating concept:
  No drying-up of the load caused by the cooling device due to separation of thermal jacket from interior
• Cooling:
  Energy-saving use of CFC-free cooling/heating system (refrigerant R134a)
• Defrosting:
  Highly efficient automatic defrosting system

Control Technology:

• ControlCOCKPIT:
  TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-colour displays.

• Language setting:
  German, English, Spanish, French, Polish, Czech, Hungarian
• Timer:
  Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
• Function SetpointWAIT:
  The process time does not start until the set temperature is reached
• Calibration:
  Three freely selectable temperature values
• Adjustable parameters:
  Temperature (Celsius or Fahrenheit), fan speed, programme time, time zones, summertime/wintertime

Safety:

• Temperature control:
  Mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature
• Temperature control:
  Over- and undertemperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, selectable on display
• AutoSAFETY:
  Additionally integrated over- and undertemperature protection “ASF”, automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature, compressor in case of undertemperature

• Autodiagnostic system:
  For fault analysis
• Alarm:
  Visual and acoustic.

Electrical data

115 Volts

• (+/- 10%)
• 50/60 Hz / approx. 10.4 amps

Stainless Steel Interior:

• Volume:
  256 I
• Dimensions W x H x D in mm:
  w_(A) x h_(B) x d_(C): 640 x 800 x 500 mm
• Max. loading of chamber:
  200 kg
• Max. loading per internal:
  20 kg

Textured Stainless Steel Casing

• Dimensions:
  w x h x d : 824 x 1552 x 684 mm
• Installation:
  On lockable castors
• Housing:
  Rear zinc-plated steel

Stainless Steel

For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.

Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.

Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.

For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used. Since aggressive substances are frequently used in the vacuum drying oven, the inner chamber and thermoshelves are made of stainless-steel W-St. 1.4404 (ASTM 316L), and the tubing is made of stainless-steel W-St. 1.4571 (ASTM 316i).
