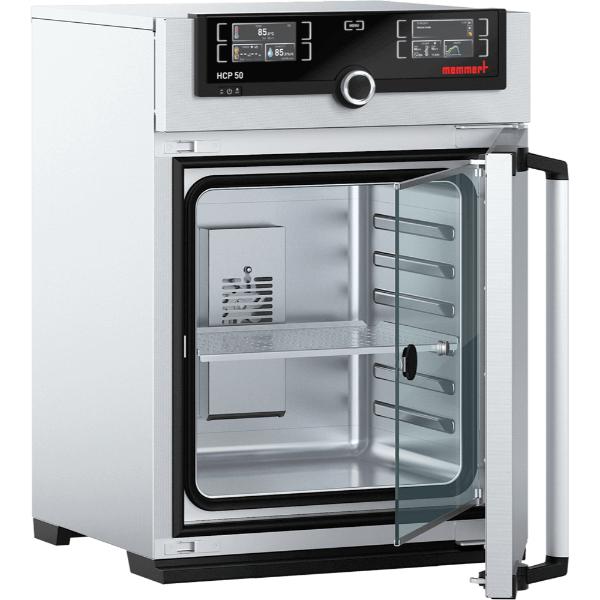

Memmert Humidity Chamber HCP 50 230V (56L)

OVERVIEW

HCP 50 Memmert climate chambers guarantee the perfect atmosphere for climate and temperature tests.

FEATURES

• STAINLESS STEEL
• ATMOCONTROL
• 3 YEAR WARRANTY
• TWINDISPLAY

Temperature Specs:

• Working temperature range:
  6°C up to +90°C
• Setting temperature range:
  +18°C up to +90°C

• Setting accuracy temperature
  0.1°C
• Temperature:
  2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over functions in case of error

Humidity Specs:

• Humidity control:
  Active microprocessor control for humidifying and dehumidifying (20 – 95 % rh), incl digital indication and auto-diagnostic system ensures even more rapid reaching of set humidity and very short recovery times. Humidity supply with distilled water (from an external tank) by a self-priming pump; integral bacteria block by generating hot steam, dehumidifying via sterile filter.
• Setting range active humidity control:
  20 to 95% rh and rh-Off

• Setting accuracy humidity:
  0.5 % rh.

Control Technology:

• ControlCOCKPIT:
  TwinDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays.
• Language setting:
  German, English, Spanish, French, Polish, Czech, Hungarian

• Adjustable parameters:
  Temperature (Celsius or Fahrenheit), relative humidity, program time, time zones, daylight savings time
• Timer:
  Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
• Function SetpointWAIT:
  The process time does not start until the set temperature is reached
• Calibration:
  Three freely selectable temperature values

Safety:

• Temperature control:
  mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 10°C above nominal temperature
• Temperature control:
  over- and under temperature monitor TWW, protection class 3.3 or adjustable temperature limiter TWB, protection class 2, adjustable at the controller

• AutoSAFETY:
  additionally integrated over- and under temperature protection “ASF”, automatically following the setpoint value at a preset tolerance range, alarm in case of over- or under temperature, heating is switched off in case of overtemperature, the compressor in case of under temperature
• Autodiagnostic system:
  integral fault diagnostics for temperature and humidity control
• Alarm:
  with visual and acoustic alarm in case of over-/under temperature and under humidity, open door and empty water tank

Electrical data

230 Volts

• 50/60 H
• approx. 6.6 A

Stainless Steel Interior:

• Volume:
  56 l
• Dimensions W x H x D in mm
  w_(A) x h_(B) x d_(C): 15.7" x 16.7" x 13"

• Max. number of internals:
  5
• Max. loading of chamber:
  165 lbs
• Max. loading per internal:
  33 lbs
• Interior:
  Material 1.4301 (ASMTM 304), corrosion resistant

Textured Stainless Steel Casing

• Dimensions:
  w x h x d : 22” x 31.3” x 20.5”

Stainless Steel

For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.

Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.

Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.

For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used. Since aggressive substances are frequently used in the vacuum drying oven, the inner chamber and thermoshelves are made of stainless-steel W-St. 1.4404 (ASTM 316L), and the tubing is made of stainless-steel W-St. 1.4571 (ASTM 316i).
