Product overview

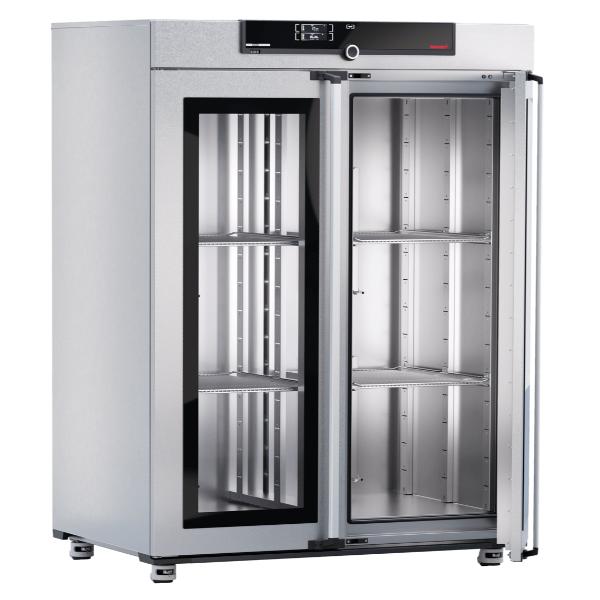

The Memmert IPP1400eco is a 1,360-liter Peltier-cooled laboratory incubator designed for controlled cultivation and temperature-sensitive applications, including work below ambient temperature. Its energy-efficient Peltier heating and cooling system provides precise temperature control with a 0°C to 70°C setpoint range.

At a glance

• Manufacturer: Memmert
• Model: IPP1400ECO
• Chamber capacity: 1360 L
• Electrical configuration: 100–240V (check required configuration)

Features and technical specifications

FEATURES

• STAINLESS STEEL
• 3 YEAR WARRANTY
• SINGLEDISPLAY

Temperature Specs

• Setting temperature range:
  +0°C  to +70°C
• Working temperature range:
  without light: 0 (at least 20 below ambient temperature) to +70°C
• Setting accuracy temperature:
  0.1°C
• Temperature:
  1 Pt100 sensor Class A in 4-wire-circuit

Heating Concept

• Peltier:
• energy-saving Peltier heating/cooling system integrated in the rear (heat pump principle)

Control Technology

• Adjustable parameters:
  Temperature (Celcius or Fahrenheit), program time, time zones, daylight savings time
• ControlCOCKPIT:
  SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
• Function SetpointWAIT:
  The process time does not start until the set temperature is reached
• Language setting:
  German/English/Spanish/French/Polish/Czech/Hungarian
• Calibration:
  Three freely selectable temperature values
• Timer:
  Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

Safety

• Temperature control:
  Adjustable electronic overtemperature monitor and mechanical temperature limiter
• Autodiagnostic system:
  For fault analysis

Electrical data

115 Volts

• 50/60 Hz / approx. 1600 W

230 Volts

• 50/60 Hz / approx. 1600 W

Stainless Steel Interior

• Volume:
  1360 I
• Dimensions W x H x D in
  w_(A) x h_(B) x d_(C): 1250 x 1450 x 750 mm (d less 32 mm for fan - Peltier)
• Max. number of internals:
  28
• Max. loading of chamber:
  250 lbs
• Max. loading per internal:
  30 lbs

Textured Stainless Steel Casing

• Dimensions:
  w x h x d : 1435 x 1913 x 905 mm (d +56mm door handle)

Stainless Steel

For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.

Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.

Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.

For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used. Since aggressive substances are frequently used in the vacuum drying oven, the inner chamber and thermoshelves are made of stainless-steel W-St. 1.4404 (ASTM 316L), and the tubing is made of stainless-steel W-St. 1.4571 (ASTM 316i).
