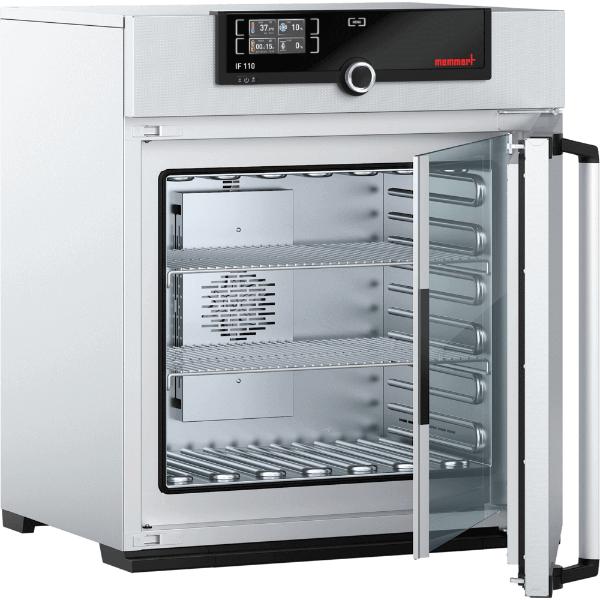

Memmert Standard Incubators IF110 115V (108L)

The heating of this incubator is optimally tuned for forced air circulation; the fan can also be switched off completely, and valuable chamber loads for research, pharmaceutics, medicine and food chemistry are warmed up very carefully.

IF110 Memmert cooled storage incubators guarantee the perfect climate and temperature for laboratory applications.

FEATURES

• STAINLESS STEEL
• 3 YEAR WARRANTY
• SINGLEDISPLAY

Temperature Specs:

• Setting temperature range:
  +20°C to +80°C
• Working temperature range:
  Min. 10°C above ambient up to +80°C
• Setting accuracy temperature:
  0.1°C
• Temperature sensor:
  1 Pt100 sensor DIN class A in 4-wire-circuit

Control Technology:

• Adjustable parameters:
  Temperature (Celsius or Fahrenheit), air flap position, program time, time zones, summertime/wintertime
• Function SetpointWAIT:
  The process time does not start until the set temperature is reached
• ControlCOCKPIT:
  SingleDISPLAY. Adaptive multifunctional digital PID-microprocessor controller with 1 high-definition TFT-colour display
• Timer:
  Digital backwards counter with target time setting, adjustable from 1 minute to 99 days

• Calibration:
  Three freely selectable temperature values
• Language setting:
  German, English, Spanish, French, Polish, Czech, Hungarian

Safety:

• Temperature control:
  Adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
• Autodiagnostic system:
  For fault analysis

Electrical data

115 Volts

• (+/- 10%)
• 50/60 Hz / approx. 7.8 amps

Stainless Steel Interior:

• Volume:
  108 I
• Dimensions W x H x D in mm:
  w_(A) x h_(B) x d_(C): 560 x 480 x 400 mm
• Interior:
  Easy-to-clean interior,made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides

• Max. number of internals:
  5
• Max. loading of chamber:
  175 kg
• Max. loading per internal:
  20 kg

Textured Stainless Steel Casing

• Dimensions:
  w x h x d : 745 x 864 x 584 mm
• Housing:
  Rear zinc-plated steel

Stainless Steel

For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.

Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.

Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.

For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used. Since aggressive substances are frequently used in the vacuum drying oven, the inner chamber and thermoshelves are made of stainless-steel W-St. 1.4404 (ASTM 316L), and the tubing is made of stainless-steel W-St. 1.4571 (ASTM 316i).
