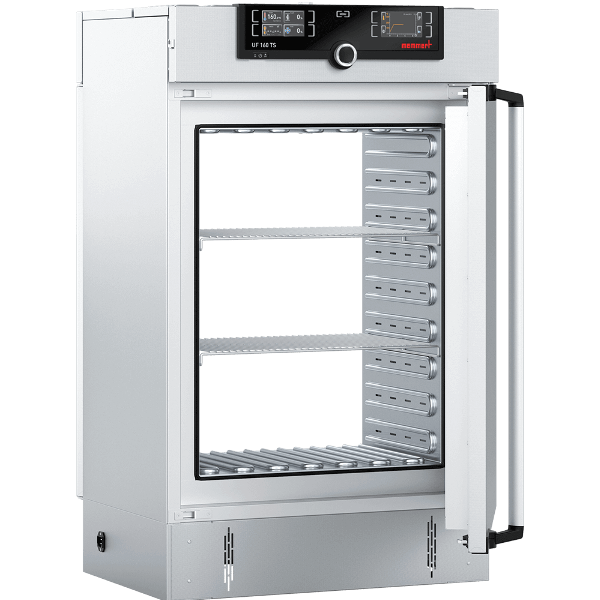

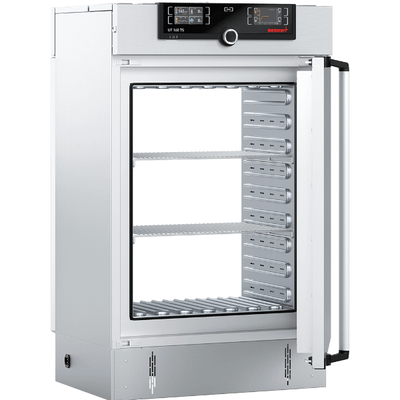

Memmert Universal Oven Specialized Equipment UF160TS

The Memmert heating oven with a fully insulated stainless steel door on both sides saves time during loading and reduces the risk of contamination, especially when handling sensitive load between grey and clean rooms. On this page, you can find all the essential technical data on our pass-through oven.

FEATURES

• STAINLESS STEEL
• 3 YEAR WARRANTY
• SINGLEDISPLAY

Temperature Specs:

• Temperature: 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value
• Set temperature range: min.10°C above ambient up to +250°C
• Resolution of display for actual values: 0.1°C

Control Technology:

• ControlCOCKPIT: adaptive multifunctional digital PID-microprocessor controller with 2 high-definition TFT-color displays
• Language Setting: German, English, Spanish, French, Polish, Czech, and Hungarian
• Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
• Function HeatBALANCE: adapting the distribution of the heating performance of the upper and lower heating circuit from -50 % to +50 %
• Function SetpointWAIT: the process time does not start until the set temperature is reached
• Calibration: three freely selectable temperature values

Safety:

• Temperature control: independently working, digitally adjustable electronic micro-processor overtemperature monitor TWW, protection class 3.1 (max-value for overtemperature, min-value for undertemperature) and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
• AutoSAFETY: additionally integrated over- and undertemperature protection "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or undertemperature, heating is switched off in case of overtemperature
• Auto diagnostic system: for fault analysis

Electrical data

230 Volts

• (+ / - 10%)
• 50/60 Hz / 13.9 amps

Stainless Steel Interior:

• Volume: 161 l
• Dimensions: w(A) x h(B) x d(C): 22” x 28.3” x 15.7”
• Max. number of grids/shelves: 8
• Max. loading of chamber 463 lbs
• Max. loading per grid/shelf 44 lbs

Stainless Steel

For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.

Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.

Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.

For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used. Since aggressive substances are frequently used in the vacuum drying oven, the inner chamber and thermoshelves are made of stainless-steel W-St. 1.4404 (ASTM 316L), and the tubing is made of stainless-steel W-St. 1.4571 (ASTM 316i).
