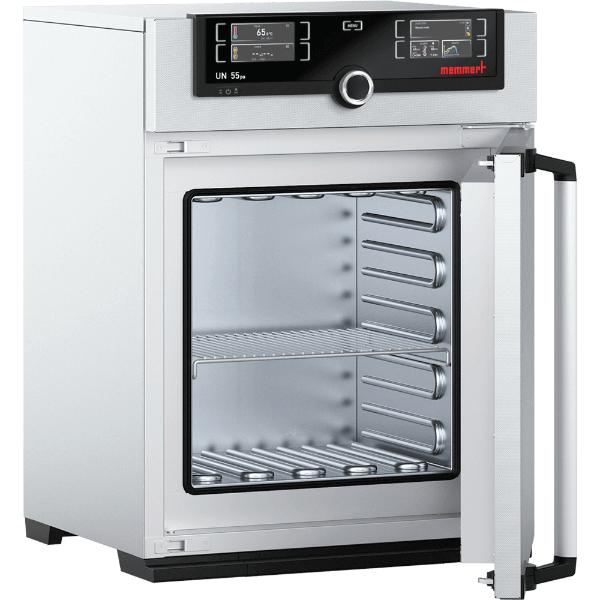

Memmert Universal Oven Specialized Equipment UN55PA 115V (53L)

The universally applicable oven is our classic appliance for temperature control in science, research and material tests in the industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.

FEATURES

• STAINLESS STEEL
• ATMOCONTROL
• 3 YEAR WARRANTY
• TWINDISPLAY

Temperature Specs:

• Set temperature range in ºC: min. 5°C above ambient up to 80°C
• Temperature: 2 Pt100 sensors Class A in 4-wire-circuit, mutually monitoring and taking over the performance at the same temperature value

Control Technology:

• Adjustable parameters: temperature (Celsius or Fahrenheit), program time, time zones, daylight savings time
• Function Setpoint WAIT: the process time does not start until the set temperature is reached
• Language setting: German/English/Spanish/French
• Calibration: three freely selectable temperature values

Safety:

• Temperature control:
  mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
• Temperature control:
  overtemperature monitor TWW, protection class 3.1 or adjustable temperature limiter TWB, protection class 2, selectable on display

• AutoSAFETY:
  additionally integrated over- and under temperature monitor "ASF", automatically following the setpoint value at a preset tolerance range, alarm in case of over- or under temperature, heating is switched off in case of overtemperature
• Autodiagnostic system:
  for fault analysis
• Alarm:
  audible and visual

Electrical data

115 Volts

• (+ / - 10%)
• 50/60 Hz / 14.8 amps

Stainless Steel Interior:

• Volume:
  53 l
• Dimensions W x H x D in mm
  w(A) x h(B) x d(C): 15.8” x 15.8” x 13”

• Max. loading of chamber:
  176 lbs

Stainless Steel

For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.

Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.

Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.

For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used. Since aggressive substances are frequently used in the vacuum drying oven, the inner chamber and thermoshelves are made of stainless-steel W-St. 1.4404 (ASTM 316L), and the tubing is made of stainless-steel W-St. 1.4571 (ASTM 316i).
