Product overview

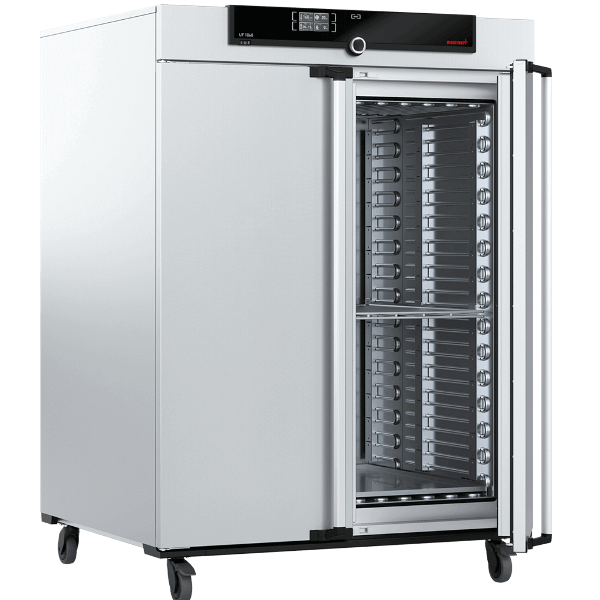

The Memmert UF1060 universal ovens has a 1060-liter chamber and is designed for laboratory temperature-control applications. Review the specifications below to confirm suitability for your workflow.

At a glance

• Manufacturer: Memmert
• Model: UF1060
• Chamber capacity: 1060 L
• Electrical configuration: 208V three-phase

Features and technical specifications

FEATURES

• STAINLESS STEEL
• 3 YEAR WARRANTY
• SINGLEDISPLAY

Temperature Specs

• Set temperature range: min.10°C above ambient up to +300°C
• Temperature: 1 Pt100 sensor DIN class A in 4-wire-circuit
• Resolution of display for setpoint values 0.1°C up to 99.9°C, 0.5°C from 100°C and for actual values 0.1°C (LED)

Control Technology

• ControlCOCKPIT: adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-color display
• Timer: Digital backwards counter with target time setting, adjustable from 1 minute to 99 days
• Adjustable Parameters: temperature (Celsius or Fahrenheit), air flap position, program time, time zones, daylight savings time
• Function SetpointWAIT: the process time does not start until the set temperature is reached
• Language Setting: German, English, Spanish, and French
• Calibration: three freely selectable temperature values

Safety

• Temperature control: adjustable electronic overtemperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
• Auto diagnostic system: for fault analysis

Electrical data

208 Volts, 3 phase, w/o neutral

• 5700 watts
• 50/60 Hz / 15.9 amps

Textured Stainless Steel Casing

• w x h x d: 1224 x 1726 x 1035 mm
• fully insulated stainless steel doors with 2- point locking (compression door lock)
• rear zinc-plated steel
• on lockable castors

Interior – Heating Concept

• w x h x d: 1040 x 1200 x 850 mm, 1060 mm
• easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
• 1 stainless steel grid
• Max. loading of chamber: 300 kg

Stainless Steel

For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.

Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.

Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.

For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used. Since aggressive substances are frequently used in the vacuum drying oven, the inner chamber and thermoshelves are made of stainless-steel W-St. 1.4404 (ASTM 316L), and the tubing is made of stainless-steel W-St. 1.4571 (ASTM 316i).
