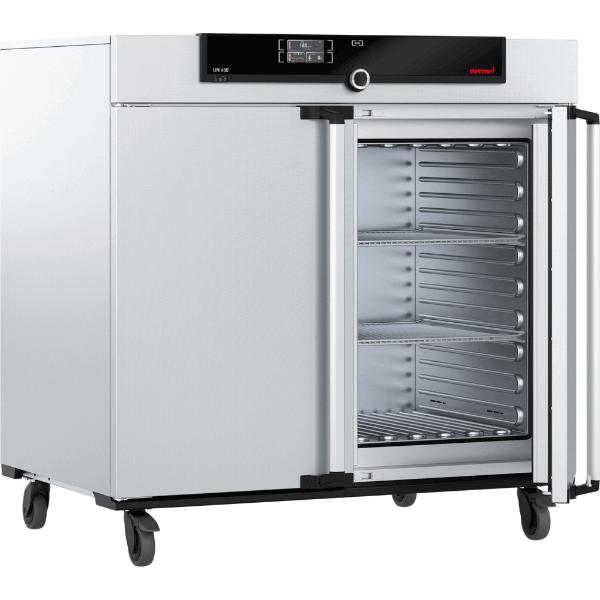

Memmert Universal Ovens UN450 (449L)

The universally applicable lab oven is Memmert’s classic appliance for temperature control in science, research and material tests in the industry. The technologically perfected masterpiece made of high-quality, hygienic, easy-to-clean stainless steel leaves nothing to be desired in terms of ventilation and control technology, overtemperature protection and precisely tuned heating technology.

FEATURES

• STAINLESS STEEL
• 3 YEAR WARRANTY
• SINGLEDISPLAY

Temperature Specs:

• Working temperature range: at least 5 (UN/UNplus/UNm/UNmplus) or 10 (UF/UFplus/UFm/UFmplus) above ambient temperature to +300 °C
• Setting accuracy temperature: up to 99.9 °C: 0.1 / from 100 °C: 0.5
• Setting temperature range: +20 to +300°C
• Temperature sensor: 1 Pt100 sensor DIN class A in 4-wire-circuit

Control Technology:

• Language setting German, English, Spanish, French, Polish, Czech, Hungarian
• ControlCOCKPIT SingleDISPLAY: Adaptive multifunctional digital PID-microprocessor controller with high-definition TFT-colour display
• Timer Digital backward: counter with target time setting, adjustable from 1 minute to 99 days
• Function SetpointWAIT: the process time does not start until the set temperature is reached
• Calibration: three freely selectable temperature values
• Adjustable parameters: temperature (Celsius or Fahrenheit), air flap position, program time, time zones, summertime/wintertime

Safety:

• Temperature control: adjustable electronic over-temperature monitor and mechanical temperature limiter TB, protection class 1 according to DIN 12880 to switch off the heating approx. 20°C above nominal temperature
• Auto diagnostic system: for fault analysis

Electrical data

208 Volts

• (+ / - 10%)
• 3 phases w/o neutral
• 50/60 Hz / 14.6 amp

Stainless Steel Interior:

• Interior: easy-to-clean interior, made of stainless steel, reinforced by deep drawn ribbing with integrated and protected large-area heating on four sides
• Volume: 449 l
• Dimensions : 1040 x 720 x 600 mm
• Max. number of internals: 8
• Max. loading of chamber: 300 kg
• Max. loading per internal: 30 kg

Stainless Steel

For many years exterior textured stainless steel has been the unmistakable feature of Memmert ovens, incubators, and climate chambers in laboratory and light-industrial settings. Memmert equipment exemplifies functional design in its most elegant and hygienic form, while still being scratch resistant, robust and durable.

Stainless steel is the ideal material for temperature control chambers and heating baths. It is particularly corrosion-resistant, hygienic, robust and recyclable without question.

Wherever Memmert ovens and heating baths are used, the superiority of high-quality stainless steel is undeniable in comparison to others that utilize coated sheet steel, which can corrode very quickly when in constant use.

For the outer housing of all Memmert appliances, textured stainless steel is used (rear walls are zinc-plated sheets). The inner chamber, sliding shelves/grids, housing, interior basin and accessories for every heating bath, stainless steel of class W-St. 1.4301 (ASTM 304) is used. Since aggressive substances are frequently used in the vacuum drying oven, the inner chamber and thermoshelves are made of stainless-steel W-St. 1.4404 (ASTM 316L), and the tubing is made of stainless-steel W-St. 1.4571 (ASTM 316i).
