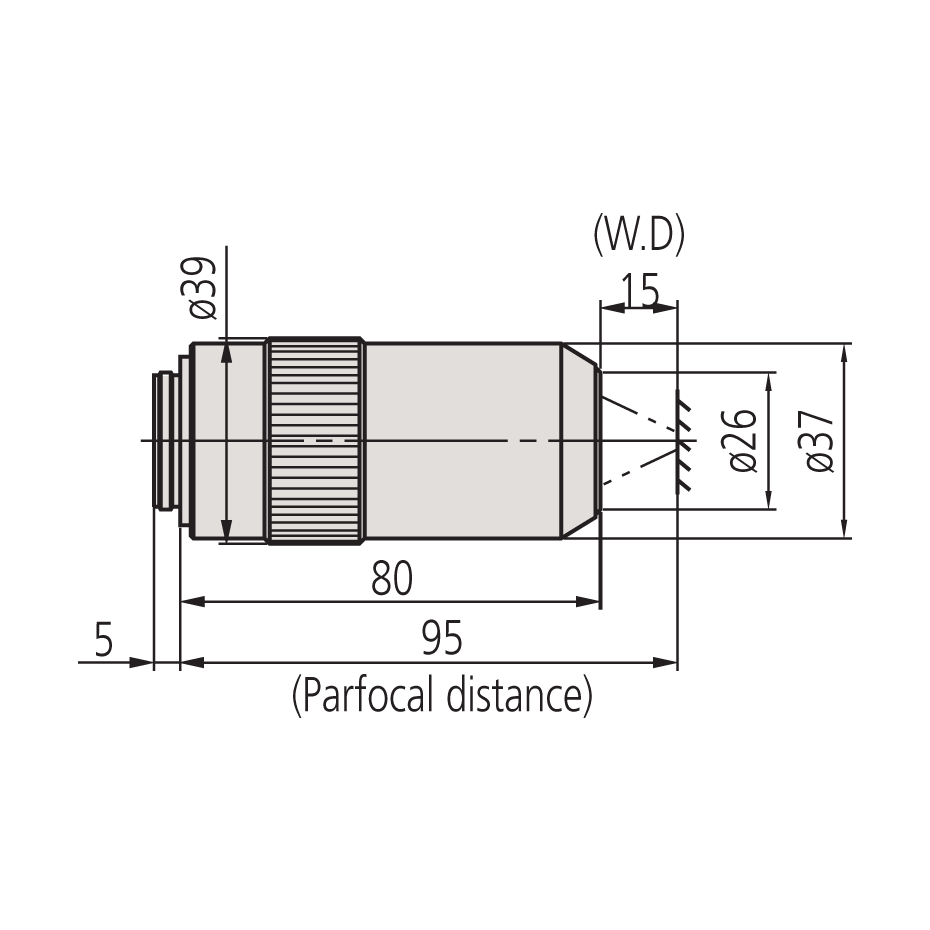

Mitutoyo 10x M Plan APO High Resolution Objective
Regular price
$9,614.00
Couldn't load pickup availability
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Mitutoyo 100x M Plan Apochromatic Super Long Working Distance Objective -378-813-3. The apochromatic optical design provides a flat, chromatic-aberration-free image for true-colour viewing, making this objective an ideal choice for metallurgical applications.
| SPECIFICATIONS | |
|---|---|
| Type: | Infinity Corrected Brightfield |
| Wavelength: | Visible |
| Magnification: | 100x |
| N.A.: | 0.55 |
| Working Distance: | 13.0mm |
| Focal Length: | 2mm |
| Resolving Power: | 0.5µm |
| Focal Depth: |
0.9µm |
| Field of View with Ø24 Eyepiece | Ø0.24 |
| Real Field of View with 1/2" Chip Camera | 0.05 x 0.06 |
| Thread Size: | M26 |
| Part Number: | 378-813-3 |
