Mitutoyo 10x M Plan APO NIR Objective
Regular price
$2,174.00
Couldn't load pickup availability
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596

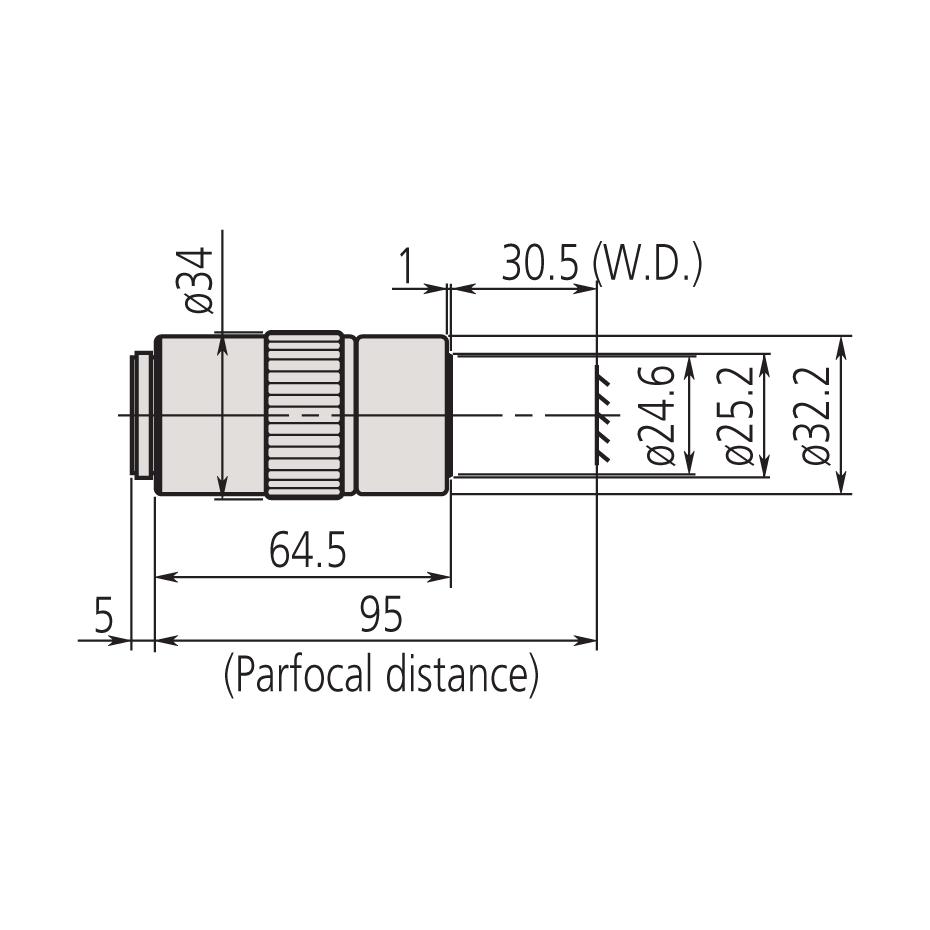

Mitutoyo 10x M Plan APO NIR Objective - 378-823-5. This objective is suitable for laser applications and provides long working distances between the lens and working surface.
| SPECIFICATIONS | |
|---|---|
| Type: | Infinity Corrected Brightfield |
| Wavelength: | Visible & NIR |
| Magnification: | 10x |
| N.A.: | 0.26 |
| Working Distance: | 30.5mm |
| Wavelength Range: | 480nm to 1800nm |
| Focal Length: | 20mm |
| Resolving Power: | 1.1µm |
| Focal Depth: |
4.1µm |
| Field of View with Ø24 Eyepiece | Ø2.4 |
| Real Field of View with 1/2" Chip Camera | 0.48 x 0.64 |
| Thread Size: | M26 |
| Part Number: | 378-823-5 |
