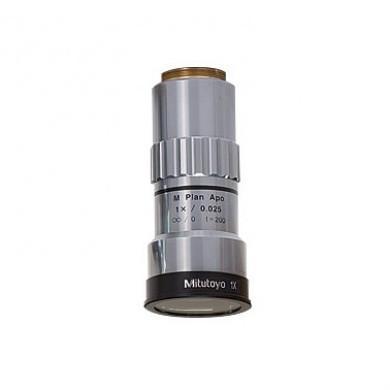

Mitutoyo 1x M Plan APO Brightfield Objective
Regular price
$2,295.00
Couldn't load pickup availability
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Mitutoyo 1x M Plan Apochromat Brightfield Objective with built-in 1/4 Wave retardation plate for glare reduction. This product had a slight design change and is now part number 378-800-12.
| SPECIFICATIONS | |
|---|---|
| Type: | Infinity Corrected Brightfield |
| Wavelength: | Visible |
| Magnification: | 1x |
| N.A.: | 0.025 |
| Working Distance: | 11.0mm |
| Resolving Power: | 11.0µm |
| Focal Depth: |
440µm |
| Field of View with Ø24 Eyepiece | Ø24 |
| Real Field of View with 1/2" Chip Camera | 4.8 x 6.4 |
| Thread Size: | M26 |
| Part Number: | 378-800-3 |
