Mitutoyo 200x M Plan APO SL Objective

$11,610.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

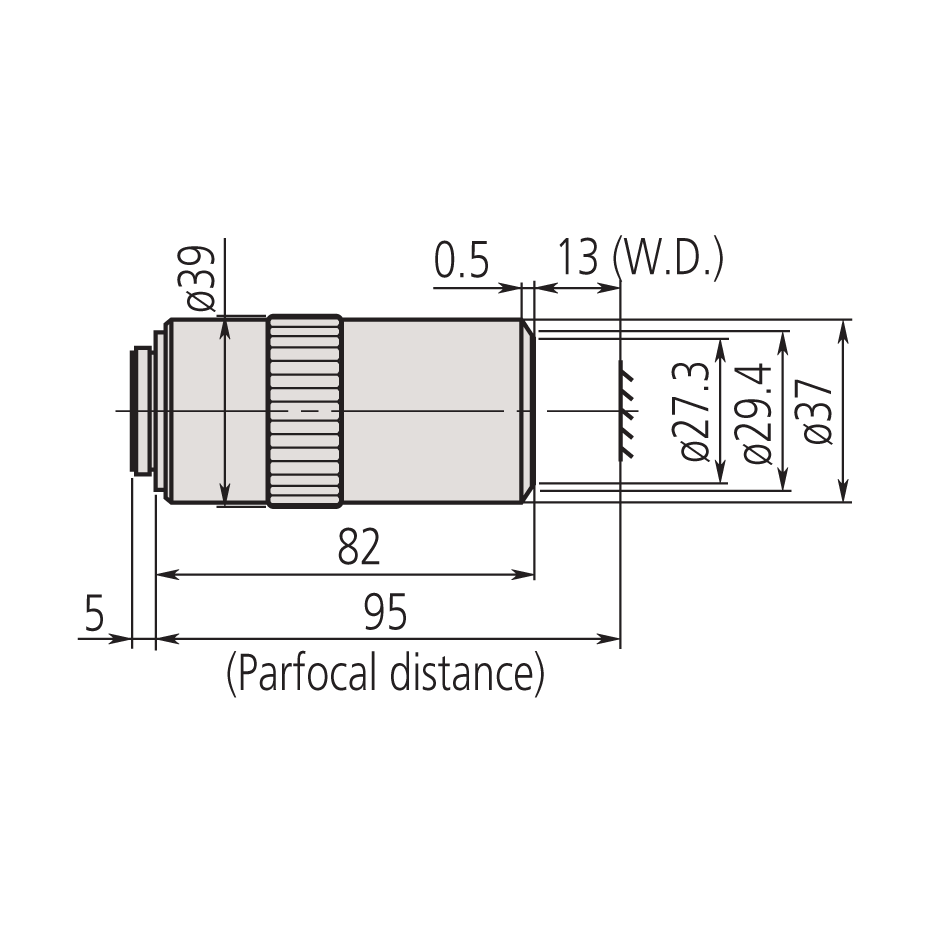

Mitutoyo 200x M Plan Apochromatic Super Long Working Distance Objective -378-816-3. The apochromatic optical design provides a flat, chromatic-aberration-free image for true-colour viewing, making this objective an ideal choice for metallurgical applications.

SPECIFICATIONS
Type: Infinity Corrected Brightfield
Wavelength: Visible
Magnification: 200x
N.A.: 0.62
Working Distance: 13.0mm
Focal Length: 1mm
Resolving Power: 0.4µm
Focal Depth:
 0.7µm
Field of View with Ø24 Eyepiece Ø0.12
Real Field of View with 1/2" Chip Camera 0.025 x 0.03
Thread Size: M26
Part Number: 378-816-3
