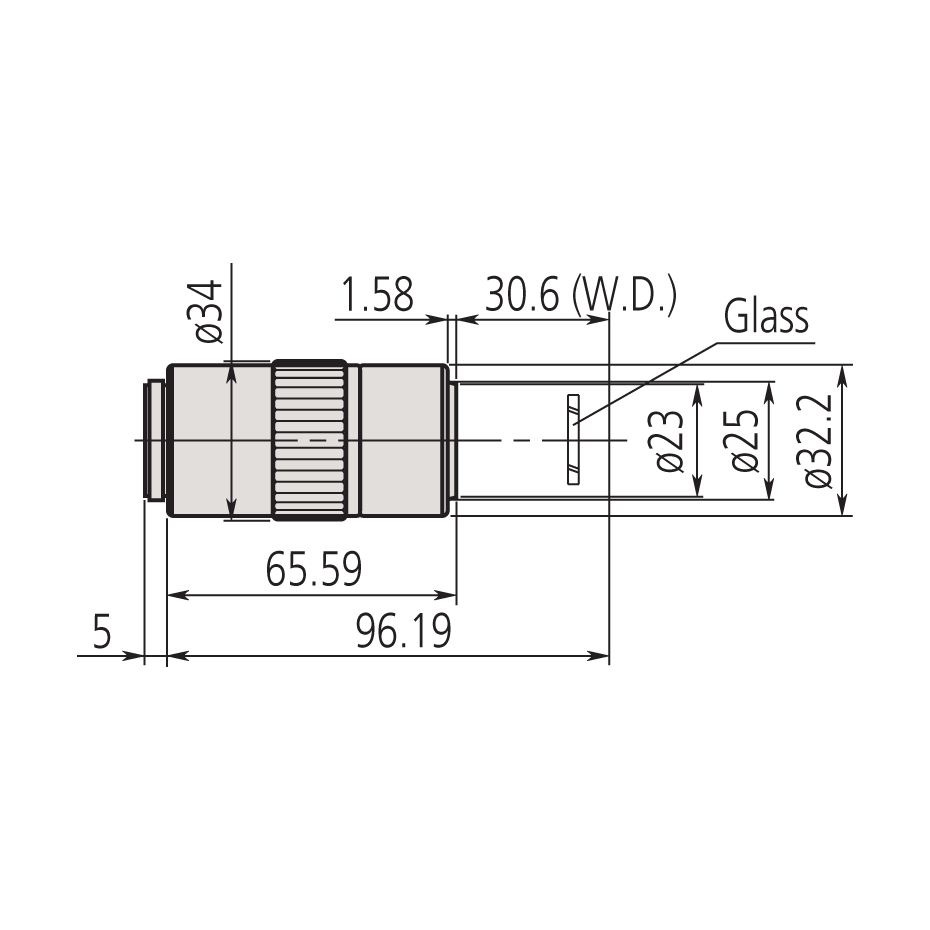

Mitutoyo 20x G Plan APO ULWD Objective - 378-847. This ultra long working distance objective is designed for observing through 3.5mm glass with its cover slip correction.
| SPECIFICATIONS | |
|---|---|
| Type: | Infinity Corrected Brightfield |
| Wavelength: | Visible |
| Magnification: | 20x |
| Glass Thickness: | 3.5mm |
| N.A.: | 0.28 |
| Working Distance: | 29.42mm |
| Focal Length: | 10mm |
| Resolving Power: | 1.0µm |
| Focal Depth: |
3.5µm |
| Field of View with Ø24 Eyepiece | Ø1.2 |
| Real Field of View with 1/2" Chip Camera | 0.24 x 0.32 |
| Thread Size: | M26 |
| Part Number: | 378-847 |
