Mitutoyo 20x LCD Plan APO NIR Objective

Regular price $4,407.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at

Have questions or need Faster Shipping? Call 919-775-5596

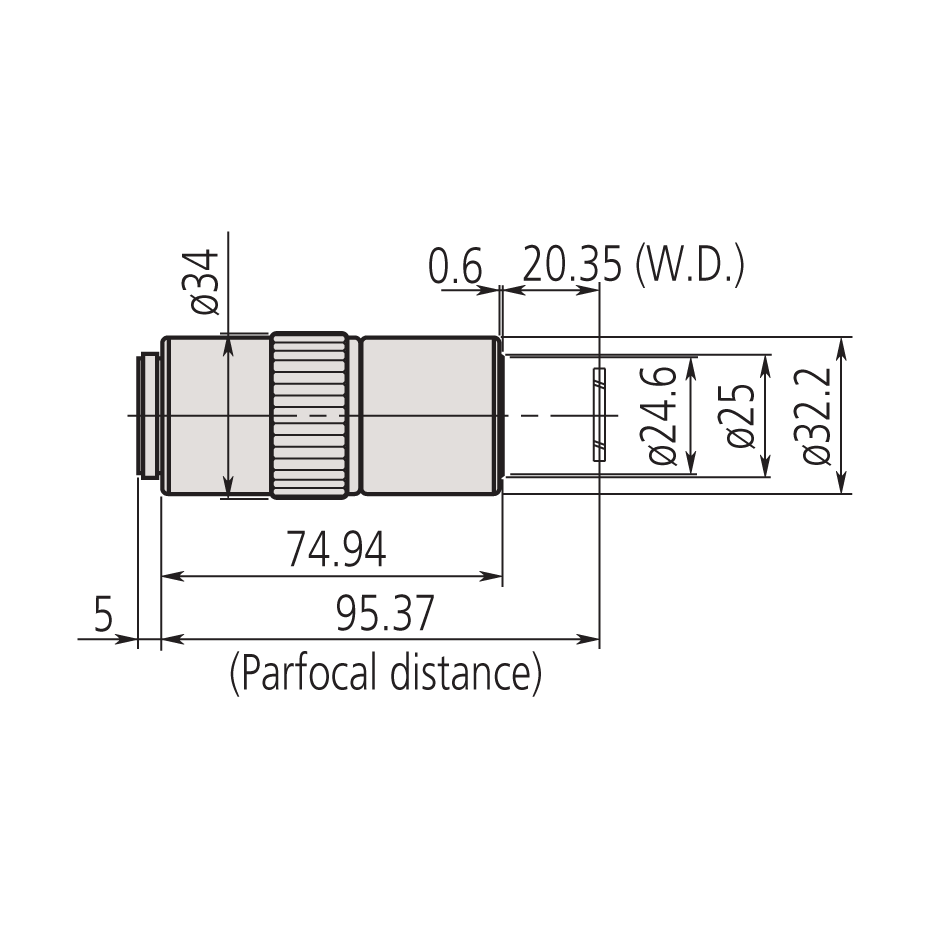

Mitutoyo 20x LCD Plan APO NIR Objective - 378-827-5. This objective is suitable for laser applications and the long working distance allows for observation through an LCD cover-glass 1.1mm thick.

Type: Infinity Corrected Brightfield
Wavelength: Visible & NIR
Magnification: 20x
Glass Thickness: 1.1mm
N.A.: 0.40
Working Distance: 19.98mm
Wavelength Range: 480nm to 1800nm
Focal Length: 10mm
Resolving Power: 0.7µm
Focal Depth:
Field of View with Ø24 Eyepiece Ø1.2
Real Field of View with 1/2" Chip Camera 0.24 x 0.32
Thread Size: M26
Part Number: 378-827-5
