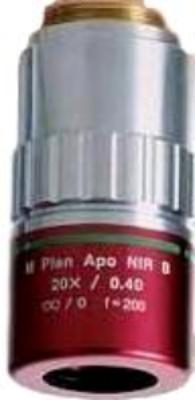

Mitutoyo 20x M Plan APO NIR B High Resolution Objective
Regular price
$5,144.00
Couldn't load pickup availability
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Mitutoyo 100x M Plan APO B NIR High Resolution Objective - 378-867-5. This objective is suitable for laser applications and provides long working distances between the lens and working surface. The high numerical aperture provides high resolution.
| SPECIFICATIONS | |
|---|---|
| Type: | Infinity Corrected Brightfield |
| Wavelength: | Visible & NIR |
| Magnification: | 20x |
| N.A.: | 0.40 |
| Working Distance: | 25.5mm |
| Wavelength Range: | 480nm to 1100nm |
| Field of View with Ø24 Eyepiece | Ø1.2 |
| Thread Size: | M26 |
| Part Number: | 378-867-5 |
