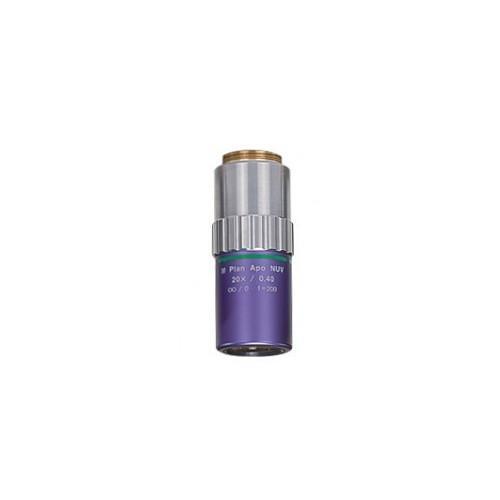

Mitutoyo 20x Plan APO NUV Objective - 378-817-8. This long working distance objective maintains focus from visible through the near-ultraviolet spectrum which makes it perfect for YAG-laser applications.
| SPECIFICATIONS | |
|---|---|
| Type: | Infinity Corrected Brightfield |
| Wavelength: | Visible & NUV |
| Magnification: | 20x |
| N.A.: | 0.40 |
| Working Distance: | 17.0mm |
| Wavelength Range: | 355nm to 620nm |
| Focal Length: | 10mm |
| Resolving Power: | 0.7µm |
| Focal Depth: |
1.7µm |
| Field of View with Ø24 Eyepiece | Ø1.2 |
| Real Field of View with 1/2" Chip Camera | 0.24 x 0.32 |
| Thread Size: | M26 |
| Part Number: | 378-817-8 |
