Mitutoyo 20x M Plan APO Objective

Regular price $2,133.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at

Have questions or need Faster Shipping? Call 919-775-5596

Mitutoyo 20x M Plan Apochromatic Objective -378-804-3. The apochromatic optical design provides a flat, chromatic-aberration-free image for true-colour viewing, making this objective an ideal choice for metallurgical applications.

Type: Infinity Corrected Brightfield
Wavelength: Visible
Magnification: 20x
N.A.: 0.42

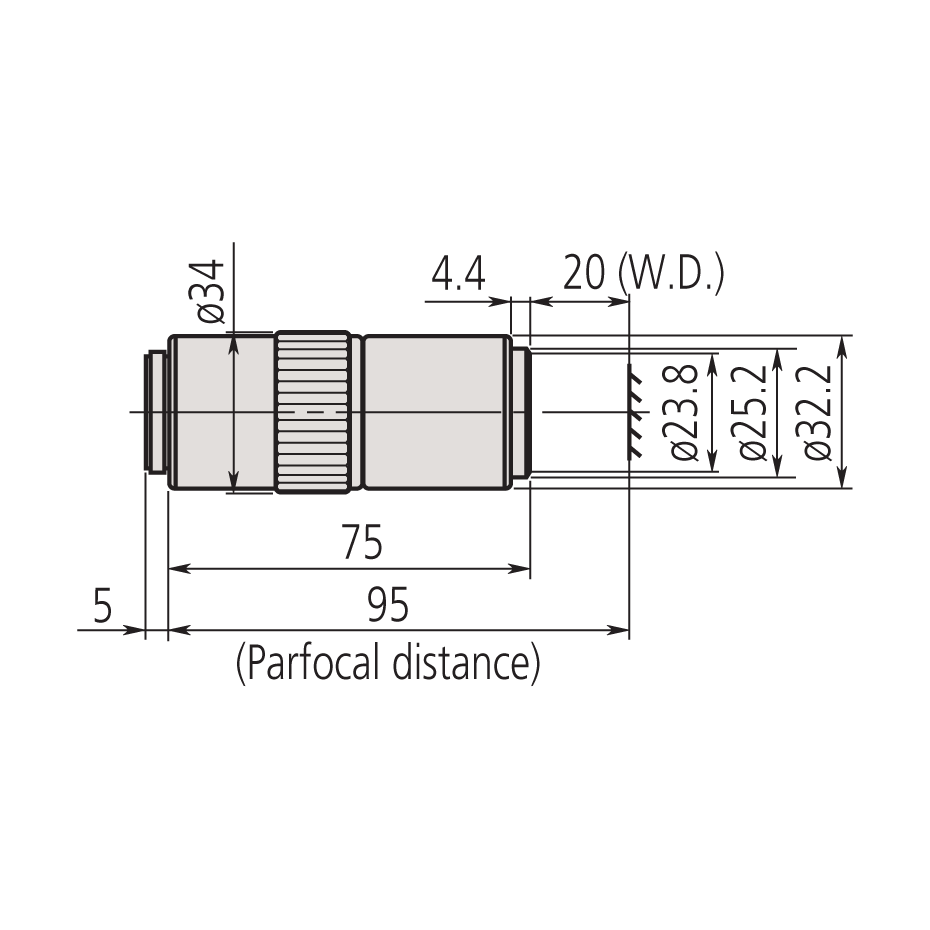

Working Distance: 20mm
Focal Length: 10mm
Resolving Power: 0.7µm
Focal Depth:
Field of View with Ø24 Eyepiece Ø1.2
Real Field of View with 1/2" Chip Camera 0.24 x 0.32
Thread Size: M26
Part Number: 378-804-3
