Home » Mitutoyo 50x M Plan APO SL Objective
Mitutoyo 50x M Plan APO SL Objective - microscopemarketplace
Mitutoyo 50x M Plan APO SL Objective - microscopemarketplace
Mitutoyo 50x M Plan APO SL Objective - microscopemarketplace
Mitutoyo 50x M Plan APO SL Objective - microscopemarketplace
Mitutoyo

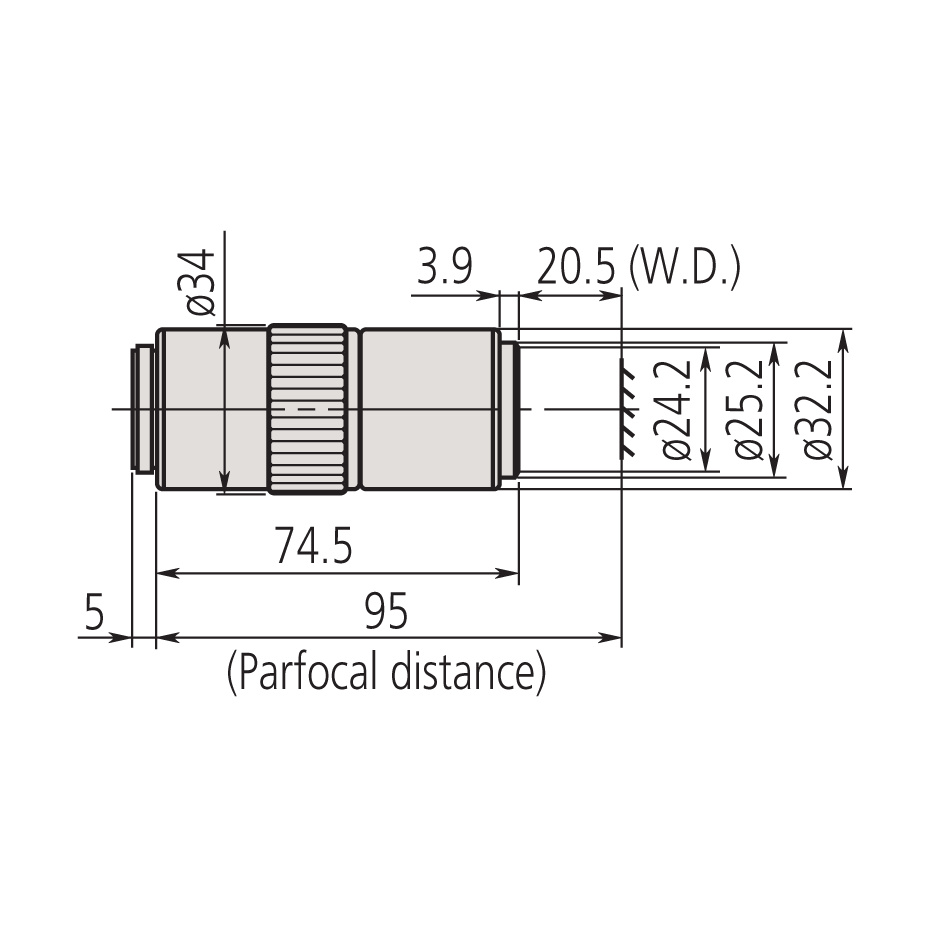

Mitutoyo 50x M Plan APO SL Objective

$3,400.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

Mitutoyo 50x M Plan Apochromatic Super Long Working Distance Objective -378-811-3. The apochromatic optical design provides a flat, chromatic-aberration-free image for true-color viewing, making these Mitutoyo microscope objectives an ideal choice for metallurgical applications.

Replaced with 378-811-15

SPECIFICATIONS
Type: Infinity Corrected Brightfield
Wavelength: Visible
Magnification: 50x
N.A.: 0.42
Working Distance: 20.5mm
Focal Length: 4mm
Resolving Power: 0.7µm
Focal Depth:
 1.6µm
Field of View with Ø24 Eyepiece Ø0.48
Real Field of View with 1/2" Chip Camera 0.10 x 0.13
Thread Size: M26
Part Number: 378-811-3
