Mitutoyo 80x M Plan APO UV Objective

Regular price $24,390.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at

Have questions or need Faster Shipping? Call 919-775-5596

Mitutoyo 80x M Plan APO UV Objective - 378-839-5. This long working distance objective is ideal for use in visible (550nm) and the ultraviolet (266nm) regions of the spectrum.

Type: Infinity Corrected Brightfield
Wavelength: Visible & UV
Magnification: 80x
N.A.: 0.55

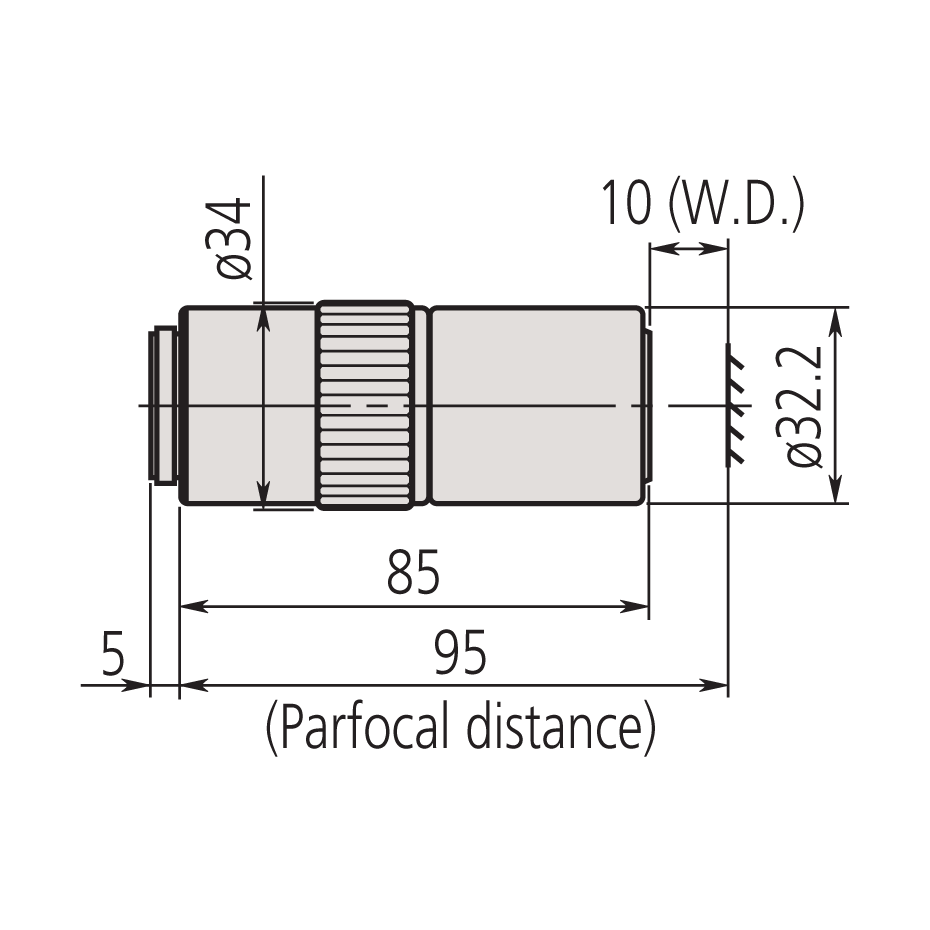

Working Distance: 10mm
Wavelength Range: 266nm and 550nm
Focal Length UV Radiation: 2.5mm
Focal Length Visible Radiation: 2.9mm
Resolving Power: 0.5µm
Focal Depth:
Field of View with Ø24 Eyepiece Ø0.3
Real Field of View with 1/2" Chip Camera 0.05 x 0.08
Thread Size: M26
Part Number: 378-839-5
