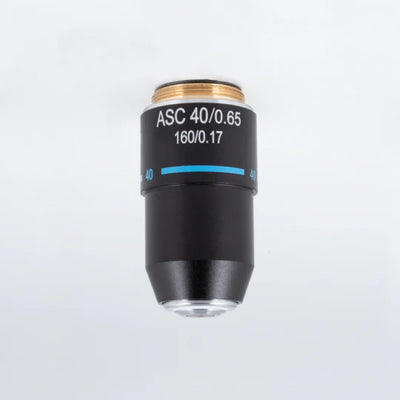

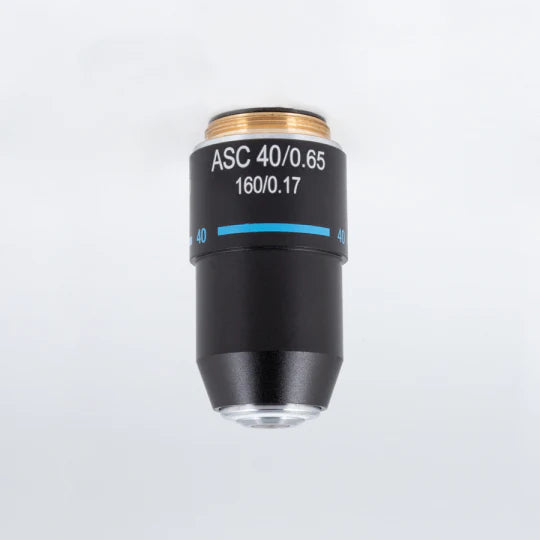

Motic ASC 40X/0.65 Spring Objective, WD 0.45 mm | 1101001701562
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Motic Achromatic Super Contrast (ASC) objective for compatible finite-tube-length compound microscope systems.
Key Specifications
- 40X magnification
- 0.65 numerical aperture
- 0.45 mm working distance
- 160 mm finite tube-length design; not an infinity objective
- Spring-loaded front lens
- 0.17 mm coverslip correction
- Part number 1101001701562
Compatibility and Applications
Check the objective's optical correction, mounting thread, and listed microscope series before ordering. The specifications below retain the original manufacturer's product details.
Original Product Specifications
CCIS ASC Objective 40X/0.65/S (WD=0.45mm) - (1101001701562)
Specification
| Model | ASC Objective 40X/0.65/S (WD=0.45mm) |
| Objective mounting thread |
W 4/5" x 1/36" (RMS Standard) |
| Objective type | Achromatic Super Contrast |
| Objective tube length | 160 mm |
| Objective magnification | 40X |
| Objective N.A. | 0.65 |
| Objective W.D. | 0.45 mm |
| Objective spring | Yes |
| Objective DIN | 45 mm |
| Objective coverglass thickness | 0.17 |
Manufacturer Information
For model-specific brochures and additional resources, visit Motic's official website and search using the exact part number above.
Shipping & Lead Time Notice: All Motic products are new and ship directly from the manufacturer. Any stated lead times are estimates only, not guaranteed delivery dates. Processing, availability, and shipping times may vary.
