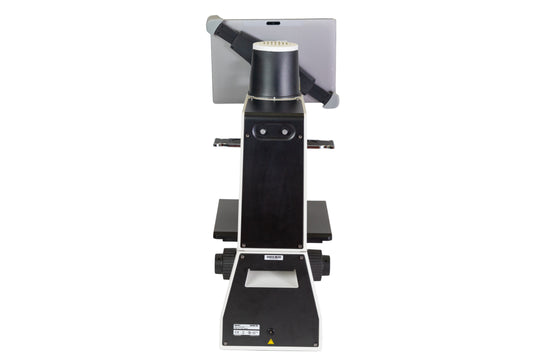

Motic AE2000 (Trinocular) + MOTICAM BTI10 Bundle Microscope
Regular price
$4,836.00
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596
This digital camera bundle comes with:
- AE2000 Trinocular
- Moticam BTI10
- Compatible C-mount adapter
Designed for routine-lab or clinical work, as well as research requirements in Pharmaceutical Laboratories or Universities, the AE2000 is more than capable of fulfilling the expectations of its users. Superb optical quality can be expected from a brand new optical series of both bright field and phase contrast lenses, following Motic ́s proven successful CCIS® Infinity Optical System.
Specifications
| Model | AE2000 Trinocular |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Condenser | ELWD condenser N.A. 0.30 (WD = 72mm) with filter holder |
| Diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment |
| Fine focus precision | 2µm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 8mm |
| Free working distance | Working distance without condenser 184mm |
| Illumination features | Auto on/off |
| Illumination interchangeability | Quartz halogen 6V/30W or LED 3W |
| Inclination | 45° inclined |
| Interpupillary distance | 48-75mm |
| Nosepiece | Left side facing quadruple |
| Objective classification | CCIS® Plan Achromatic, DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), [Optional] LWD PH20X/0.30 (WD 4.7mm), [Optional] LWD 40X/0.50 (WD 3.0mm) |
| Phase contrast | Slider |
| Stage | Plain stage with metal and glass stage inserts |
| Stage size | 200x239mm |
| Stand type | Inverted |
| Standard contrast technique | Brightfield, phase contrast |
| Transmitted illumination | Quartz Halogen 6V/30W with intensity control |
| Transformer | External |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, power cord, blue, green and neutral density filters, phase ring Ph1, centering telescope, centering keys |
| Dimensions LxWxH | 556x218x496mm |
| Weight Net | 12.2kg |
