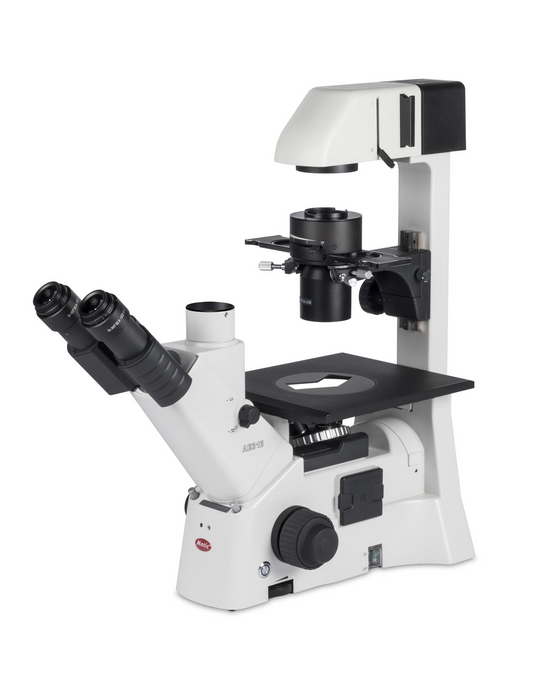

Motic AE31 Elite LED Trinocular Inverted Microscope
Regular price
$3,943.00
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596
The AE31 Elite is a refined inverted microscope with an extended focus on practical aspects. In order to harmonize the optical setup of our CCIS© Infinity concept, the AE31 Elite works with the newest generation of LWD Plan Achromatic lenses. All accessories from the BA series such as the C-mounts, additional eyepieces, etc. can be used without restriction on AE31 Elite. Upgradable options like fluorescence are available within this inverted microscope series.
Specifications
| Model | AE31E Binocular | AE31E Trinocular |
| Observation tube | Binocular head, Siedentopf type, 360° swiveling | Trinocular head, Siedentopf type, 360° swiveling |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) |
| Condenser | Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm) | Focusable and centerable ELWD condenser N.A. 0.30 (WD 72mm) |
| Diaphragm | Iris diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield WF10X/22mm with diopter adjustment | Widefield WF10X/22mm with diopter adjustment |
| Fine focus precision | 2µm | 2µm |
| Fluorescence | Optional HBO | Optional HBO |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 10mm | 10mm |
| Free working distance | Working distance without condenser 231mm | Working distance without condenser 231mm |
| Illumination features | Auto-OFF and Light Memory function | Auto-OFF and Light Memory function |
| Illumination interchangeability | Quartz halogen 6V/30W or LED 3W | Quartz halogen 6V/30W or LED 3W |
| Inclination | 45° inclined | 45° inclined |
| Interpupillary distance | 48-75mm | 48-75mm |
| Nosepiece | Left side facing quintuple | Left side facing quintuple |
| Objective classification | CCIS® Plan Achromatic, DIN | CCIS® Plan Achromatic, DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), LWD PH20X/0.30 (WD 4.7mm), [Optional] LWD PH40X/0.50 (WD 3.0mm) | 4X/0.10 (WD 12.6mm), PH10X/0.25 (WD 4.1mm), LWD PH20X/0.30 (WD 4.7mm), [Optional] LWD PH40X/0.50 (WD 3.0mm) |
| Phase contrast | Slider | Slider |
| Stage | Plain stage with metal and glass stage inserts | Plain stage with metal and glass stage inserts |
| Stage size | 200x239mm | 200x239mm |
| Stand type | Inverted | Inverted |
| Standard contrast technique | Brightfield, phase contrast | Brightfield, phase contrast |
| Transmitted illumination | Koehler Quartz halogen 6V/30W with intensity control | Koehler Quartz halogen 6V/30W with intensity control |
| Transformer | Internal | Internal |
| Power supply | 100-240V (CE) | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, blue, green interference and ground glass filters, phase ring Ph1, centering telescope, centering keys, spare fuse | Dust cover, power cord, Allen key, blue, green interference and ground glass filters, phase ring Ph1, centering telescope, centering keys, spare fuse |
| Dimensions LxWxH | 556x200x529mm | 556x200x529mm |
| Weight Net | 11.7kg | 11.7kg |
