Motic B1-252SP Educational Binocular Compound Microscope

Regular price $990.09
Regular price Sale $1,161.85 Sale price $990.09
CONTACT US: Need help choosing the right microscope, laboratory or medical equipment? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Tax exempt? Please email your tax exemption certificate to info@mundaymicroscope.com.

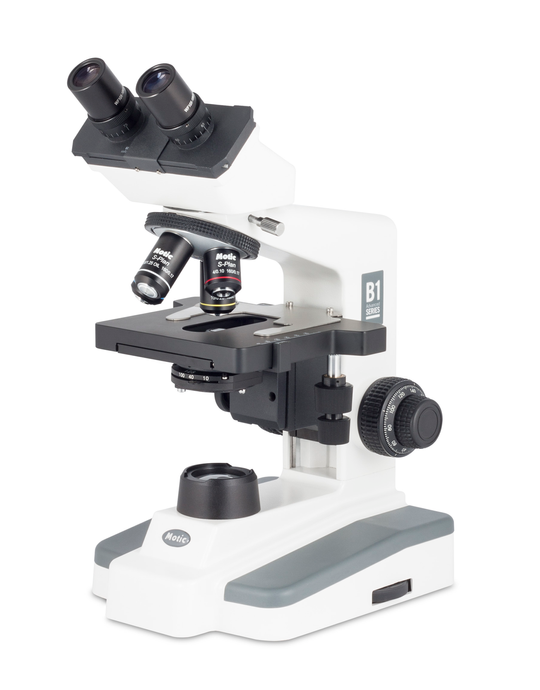

The Motic B1-252SP is a binocular compound microscope for teaching, introductory biological microscopy, and routine laboratory observation. Semi-plan achromatic objectives and a rackless mechanical stage provide practical optics and convenient slide handling.

Key Features and Applications

  • 160 mm finite optical system with semi-plan achromatic objectives
  • 4X, 10X, 40X and 100X oil objectives in the standard configuration
  • Binocular 45-degree inclined head and WF10X/18 mm eyepieces
  • 3W adjustable transmitted LED illumination

Check the specifications below for the supplied configuration; optional accessories are not included unless explicitly stated.

A binocular microscope that is easy to use, for basic work in biology and medicine. The sections, smears, and other samples are treated by our Semi-Planachromatic SP objectives in a 4-fold revolving nose piece. Doctors and students alike will benefit from the conveniently pre-installed package.

    Specifications

    Model B1-252SP
    Observation tube Binocular, sliding type
    Optical system  Finite Optical System, 160mm
    Inclination  45° inclined, 360° rotating
    Interpupillary distance  55-75mm
    Diopter adjustment  On both tubes , +/- 5 diopter
    Eyepieces  Widefield 10X/18mm
    Nose piece Quadruple revolving nose piece with click stops
    Objective classification Semi-Planachromatic SP
    Objectives 4X/0.1, 10X/0.25, 40X/0.65/S, 100X/1.25/S
    Stand type  Upright
    Stage Built-in low position coaxial rackless mechanical stage with sample holder
    Travel range X&Y  76x40mm
    Condenser  Focusable 1.25 N.A. Abbe Condenser, iris diaphragm and filter holder
    Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
    Fine focus precision 2 μm minimum increment
    Upper limit stop Preset and Adjustable
    Transmitted illumination  3W LED illumination with intensity control
    Accessories included  Dust cover and immersion oil
