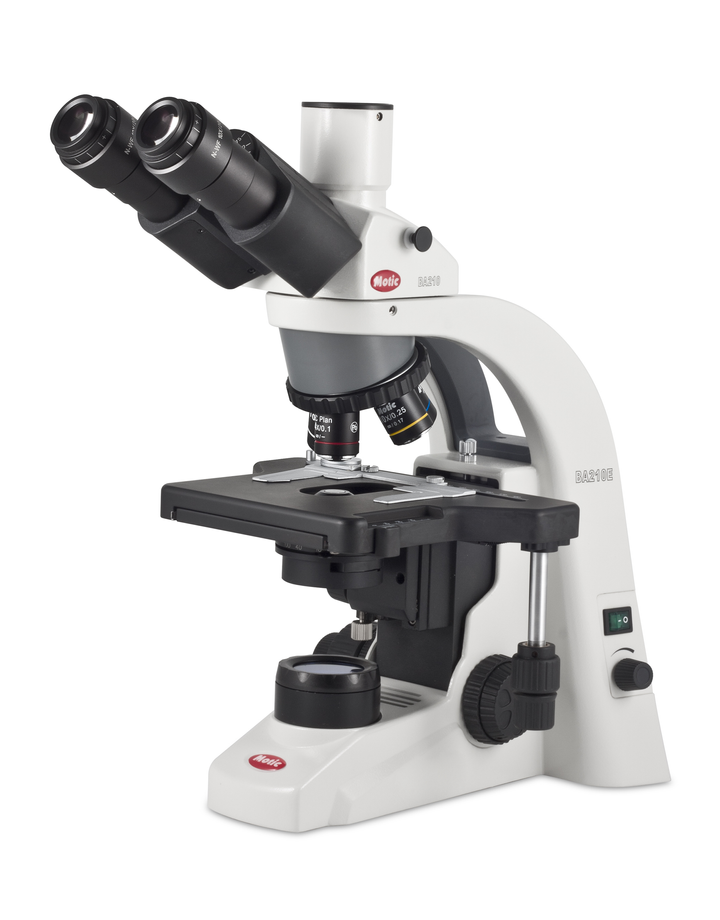

Motic BA210E Microscope
Regular price
$1,299.00
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596
A compound microscope perfect for basic work in life sciences, education, and industrial environments. The use of Motic's Plan Achromatic objectives ensures the clarity and precision of sections, smears, and native transparent samples. Students and lab technicians benefit from the pre-installed optics and illuminations.
Specifications
| Model | BA210E Binocular | BA210E Trinocular |
| Observation tube | Binocular head, Siedentopf type | Trinocular head, Siedentopf type |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) |
| Condenser | Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders | Focusable Abbe condenser N.A. 1.25 with slot for contrast sliders |
| Darkfield | Optional slider | Optional slider |
| Diaphragm | Iris diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment | Widefield N-WF10X/20mm with diopter adjustment |
| Filter holder | On top of the illuminator with fixing cap | On top of the illuminator with fixing cap |
| Fine focus precision | 2µm | 2µm |
| Fluorescence | Optional LED | Optional LED |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 20mm | 20mm |
| Illumination interchangeability | Quartz halogen 6V/30W or LED 3W | Quartz halogen 6V/30W or LED 3W |
| Inclination | 30° inclined, 360° rotating | 30° inclined, 360° rotating |
| Interpupillary distance | 55-75mm | 55-75mm |
| Nosepiece | Reversed quadruple | Reversed quadruple |
| Objective classification | CCIS® EC Plan Achromatic, DIN | CCIS® EC Plan Achromatic, DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) |
| Phase contrast | Optional slider | Optional slider |
| Polarization | Optional add-on | Optional add-on |
| Stage | Mechanical stage with built-in low position rackless coaxial stage control and sample holder | Mechanical stage with built-in low position rackless coaxial stage control and sample holder |
| Stage size | 150x150mm | 150x150mm |
| Stand type | Upright | Upright |
| Standard contrast technique | Brightfield | Brightfield |
| Transmitted illumination | Quartz halogen 6V/30W with intensity control | Quartz halogen 6V/30W with intensity control |
| Travel range X&Y | 80x30mm | 80x30mm |
| Upper limit stop | Upper limit stop preset but adjustable | Upper limit stop preset but adjustable |
| Transformer | Internal | Internal |
| Power supply | 100-240V (CE) | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw | Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, cord hanger, thumb screw |
| Dimensions LxWxH | 360x220x395mm | 360x220x395mm |
| Weight Net | 7.2kg | 7.2kg |
