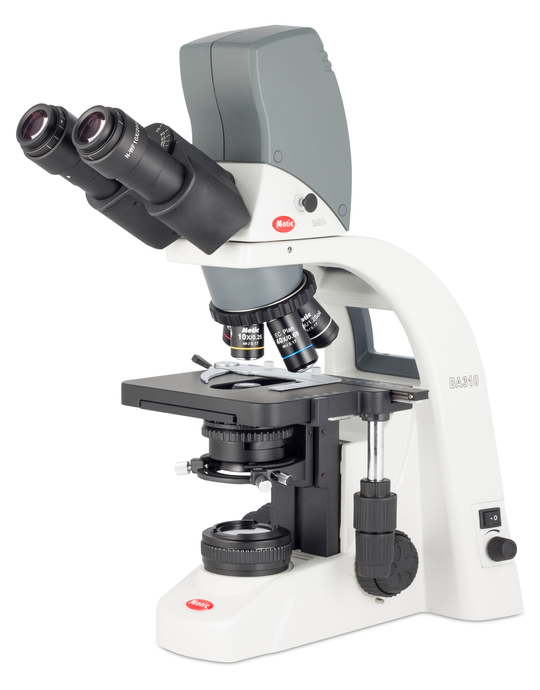

Motic BA310 Digital Microscope
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
The demands placed on any routine microscope for daily work needs careful focus on every microscopic detail. The new BA310 series features a powerful adjustable light source to meet both delicate and detailed lighting requirements for all sample types while the fully featured Koehler illumination helps in highlighting even the weakest stained specimens.
Specifications
| Model | BA310 Digital |
| Observation tube | Binocular head, Siedentopf type with built-in digital camera |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) |
| Sensor type | CMOS |
| Sensor size | 1/2" |
| Capture resolution | 5MP |
| Live display through USB | 2048x1536 pixels |
| Data transfer | USB 2.0 |
| Inclination | 30° inclined, 360° rotating |
| Interpupillary distance | 55-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment |
| Nose piece | Reversed quintuple |
| Objective classification | CCIS EC Plan Achromat, DIN |
| Objectives | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) |
| Objective mounting thread | W 4/5" x 1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Mechanical stage with built-in low position coaxial stage control with tension adjustment and 2-sampale holder |
| Stage size | 175X140mm |
| Travel range X&Y | 76X50mm |
| Condenser | Focusable Abbe Condenser N.A. 0.90/1.25 with iris diaphragm and slot for contrast sliders |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2 µm |
| Focusing stroke | 20mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator with fixing cap |
| Transmitted illumination | LED Koehler illumination with intensity control |
| Software | Motic Images Plus 3.0 for Windows, OSX and Linux |
| Transformer | Internal |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, power cord, allen key, immersion oil (5ml), thumb screw, calibration slide, USB cable, spare fuse, and cord hanger. |
| Dimensions LxWxH | 400x220x458mm |
| Net weight | 8.8kg |
| Contrast techniques | |
| Standard contrast technique | Brightfield |
| Polarization | Optional add-on |
| Phase contrast | Optional slider/turret |
| Darkfield | Optional slider/turret |
