Motic BA310 Halogen Microscope
Regular price
$1,720.00
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596

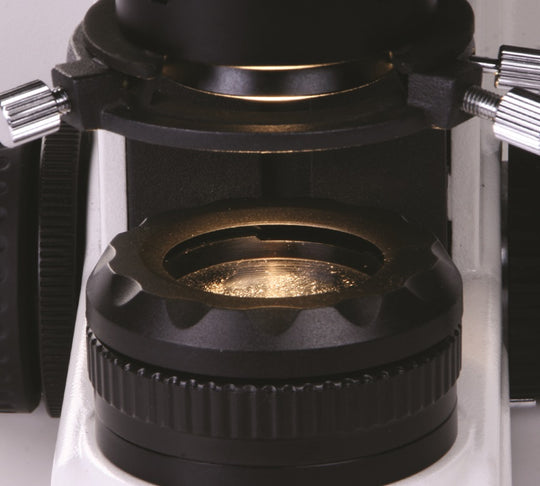

The demands placed on any routine microscope for daily work needs careful focus on every microscopic detail. The new BA310 series features a powerful adjustable light source to meet both delicate and detailed lighting requirements for all sample types while the fully featured Koehler illumination helps in highlighting even the weakest stained specimens.
Specifications
| Model | BA310 LED Binocular (No longer available) | BA310 LED Trinocular (No longer Available) | BA310 LED Digital |
| Observation tube | Binocular head, Siedentopf type, 360° swiveling | Trinocular head, Siedentopf type, 360° swiveling | Binocular head, Siedentopf type with Built-in digital camera |
| Optical system | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) | Colour Corrected Infinity Optical System (CCIS®) |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Darkfield | Optional slider/turret | Optional slider/turret | Optional slider/turret |
| Diaphragm | Iris diaphragm | Iris diaphragm | Iris diaphragm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/20mm with diopter adjustment | Widefield N-WF10X/20mm with diopter adjustment | Widefield N-WF10X/20mm with diopter adjustment |
| Filter holder | On top of the illuminator | On top of the illuminator | On top of the illuminator with fixing cap |
| Fine focus precision | 2µm | 2µm | 2µm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 20mm | 20mm | 20mm |
| Inclination | 30° inclined, 360° rotating | 30° inclined, 360° rotating | 30° inclined, 360° rotating |
| Interpupillary distance | 48-75mm | 48-75mm | 55-75mm |
| Nosepiece | Reversed quintuple | Reversed quintuple | Reversed quintuple |
| Objective classification | CCIS® EC Plan Achromatic, DIN | CCIS® EC Plan Achromatic, DIN | CCIS® EC Plan Achromatic, DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) | W 4/5"x1/36" (RMS standard) | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) |
| Phase contrast | Optional slider/turret | Optional slider/turret | Optional slider/turret |
| Polarization | Optional add-on | Optional add-on | Optional add-on |

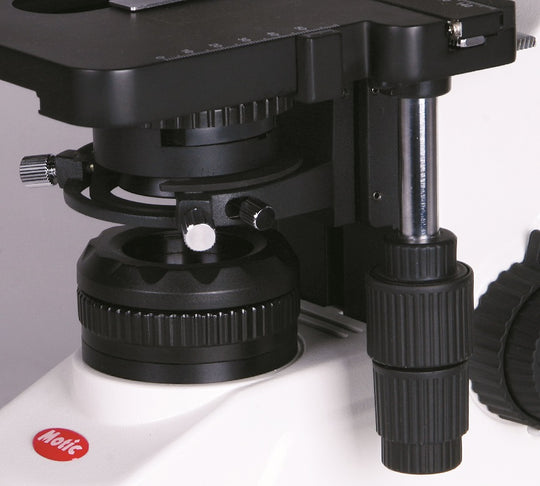

| Stage | Mechanical stage with built-in low position coaxial stage control with tension adjustment and 2-sample holder | Mechanical stage with built-in low position coaxial stage control with tension adjustment and 2-sample holder | Mechanical stage with built-in low position coaxial stage control with tension adjustment and 2-sample holder |
| Stage size | 175x140mm | 175x140mm | 175x140mm |
| Stand type | Upright | Upright | Upright |
| Standard contrast technique | Brightfield | Brightfield | Brightfield |
| Transmitted illumination | Koehler 6V/30W Halogen | Koehler 6V/30W Halogen | Koehler 6V/30W Halogen |
| Travel range X&Y | 76x50mm | 76x50mm | 76x50mm |
| Upper limit stop | Upper limit stop preset but adjustable | Upper limit stop preset but adjustable | Upper limit stop preset but adjustable |
| Transformer | Internal | Internal | Internal |
| Power supply | 100-240V (CE) | 100-240V (CE) | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, Immersion oil (5ml), spare fuse, cord hanger, thumb screw | Dust cover, power cord, Allen key, Immersion oil (5ml), spare fuse, cord hanger, thumb screw | Dust cover, power cord, Allen key, Immersion oil (5ml), spare fuse, cord hanger, thumb screw, calibration slide, USB cable |
| Dimensions LxWxH | 400x220x400mm | 400x220x400mm | 400x220x458mm |
| Weight Net | 8.6kg | 8.6kg | 8.8kg |
