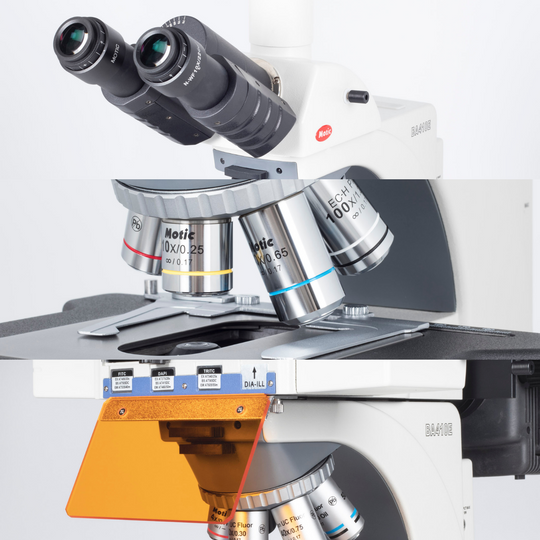

Motic BA410E with FITC and TRITC Filter Fluorescence Bundle Microscope
Regular price
$12,047.00
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596
This fluorescence bundle comes with:
- BA410E 3WLED Trinocular Sextuple Microscope (light split 80/20)
- EGFP/FITC/Cy2/AlexaFluor 488 Filter
- TRITC/Cy3/TagRFP/AlexaFluor 546 Filter
- Complete EPI-Fluorescence Attachment for BA410E
Universities and laboratories with applications in hematology, cytology and histology will look for this flexible microscope platform with a superb performance in optics and mechanics.
Specifications
| Model | BA410E Trinocular Sextuple 50W |
| Observation tube | Trinocular head, Siedentopf type |
| Optical system | Color Corrected Infinity Optical System (CCIS®) |
| Condenser | Focusable and centerable Swing-out Abbe condenser N.A. 0.90/0.13 |
| Darkfield |
Iris diaphragm |
| Data transfer | Optional slider/turret |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield N-WF10X/22mm with diopter adjustment |
| Filter holder | On top of the illuminator with fixing cap |
| Fine focus precision | 1μm |
| Fluorescence | Optional HBO |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Focusing stroke | 27mm |
| Illumination features | Auto-OFF and Light Memory function. External lamphouse. |
| Illumination interchangeability | Quartz halogen 12V/50W or LED 3W |
| Inclination | 30° inclined, 360° rotating |
| Interpupillary distance | 50-75mm |
| Nosepiece | Reversed sextuple |
| Objective classification | CCIS® EC-H Plan Achromatic, DIN |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Objectives | 4X/0.10 (WD 15.9mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.5mm), 100X/1.25/S-Oil (WD 0.15mm) |
| Phase contrast | Optional slider/turret |
| Polarization | Optional slider/add on |
| Stage | Mechanical stage with built-in low position rackless coaxial stage control, ceramic insert and sample holder |
| Stage size | 180x170mm |
| Stand type | Upright |
| Standard contrast technique | Brightfield |
| Transmitted illumination | Koehler Quartz halogen 12V/50W with intensity control |
| Travel range X&Y | 80x55mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Transformer | Internal |
| Power supply | 100-240V (CE) |
| Accessories included | Dust cover, power cord, Allen key, immersion oil (5ml), blue filter, spare fuse, arm rest |
| Dimensions LxWxH | 550x242x435mm |
| Net weight | 14.2kg |
