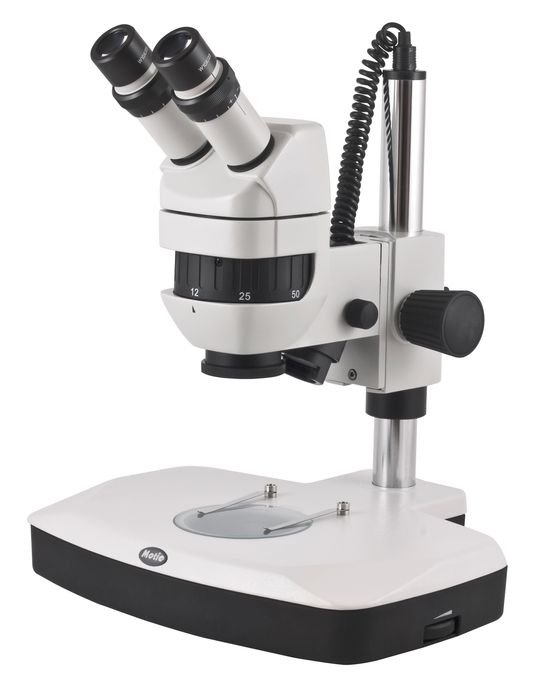

Motic K-400 LED System Stereo Microscope

$1,862.46
Sale $2,185.54 $1,862.46
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

A stereo microscope for a wide range of biological and material science applications in both routine and research fields. The CMO optical system (Common Main Objective) delivers impressive images with a 4-position turret of 6X, 12X, 25X and 50X total magnification in the standard Achromatic outfit. The instrument comes with a 10W transmitted / 10W incident Halogen illumination. An upgrade to documentation is possible by an intermediate photo tube.

    Specifications

    Model K-400 LED
    Observation tube Binocular head
    Optical System  Common Main Objective (CMO) Infinity optical system
    Inclination  45° inclined
    Interpupillary distance  54-76mm
    Diopter adjustment  On both tubes, +/- 5 diopter
    Eyepieces  Widefield WF10X/23mm
    Objectives system 4-position drum magnification changer
    Objectives 6X, 12X, 25X, 50X
    Working distance 89mm
    Stand type  Pole type stand with transmitted illumination
    Head holder  For ∅32mm column with incident illumination
    Focus mechanism  Coarse focusing system with tension adjustment
    Focusing stroke  49mm
    Incident illumination LED 3W with intensity control
    Transmitted illumination  LED 3W with reflector and intensity control
    Transformer  Internal
    Power supply 100-240V (CE)
    Accessories included  Dust cover, black/white and frosted stage plates and blue filter
    Dimensions LxWxH  329x277x434mm
    Base 329x277mm
    Column/Arm Height 295mm, ∅32mm
    Weight Net 5.9kg
    Standard contrast technique  Brightfield
    Polarization Optional add-on
    Darkfield Optional add-on
