Motic

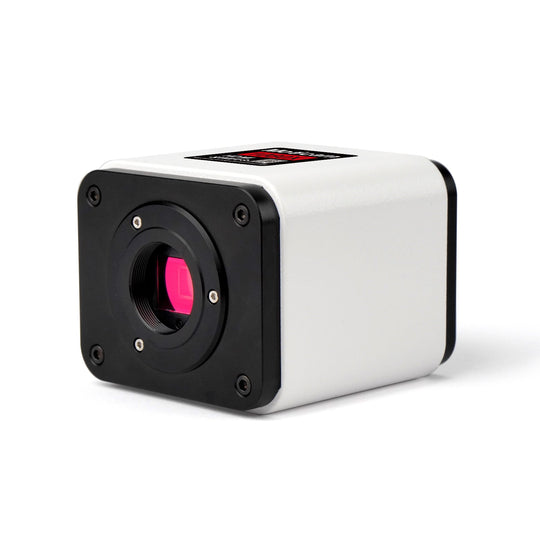

Motic MOTICAM 1080X Microscope Camera

$1,184.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

The Moticam 1080X is a camera that was designed for ease of use and the ability to output fast live images at 1920x1080 pixels in full HD.

Unlike other cameras, the Moticam 1080X does not require a computer. Simply plug the camera through the HDMI port and display images with the use of the onboard software and a USB mouse through an HDMI monitor.

By having an integrated SD card slot, not only does saving images not require a computer, but it also allows flexibility to save portable data.

    Specifications

    Model Moticam 1080X
    Sensor type IMX185
    Sensor size 1/1.9"
    Imaging area 7.20 x 4.05mm
    Capture resolution  2MP on SD card (3840x2160 pixels)
    Pixel Size 3.75 x 3.75μm
    Scan mode Progressive
    Shutter mode Rolling Shutter
    G Sensitivity Dark Signal 1120 mv with 1/30s; 0.15 mv with 1/30s
    Exposure time 0.06~918ms
    Operating temperature From -10 to +50 Degrees Celsius non-condensing
    Operating humidity 30~80%RH
    Lens mount C-Mount
    Software  MotiConnect for Android/iOS; Motic Images Plus 3.1 for Windows/Mac OS
    Package includes 12V Power Adapter, CS Ring, Motic 4-dot calibration slide, Dust Cap, Manual, 12mm lens, Adapter φ30/φ38, Macro Tube, Macro Calibration card
    INTERFACE & BUTTON FUNCTIONS
    USB MultiPort USB WiFi Dongle or USB Mouse
    HDMI HDMI Output
    DC12V DC12V Power in
    SD SD Card Slot
    ON/OFF Power On/Off Switch
    LED Power Off Red,Power On Blue
    SPECIFICATION FOR HDMI OUTPUT
    UI Operation With USD Mouse
    Video Record ASF Format 1080P 30fps in SD Card
    Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
    Toolbar Including Zoom, Mirror, Comparison, Freeze, Measure, Cross, Browser Function
    Max. frames per second (fps*) 30fps@1920x1080
    SPECIFICATION FOR WIFI OUTPUT
    UI Operation MotiConnect & Motic Images Plus 3.1
    WiFi Performance 802.11n 150Mbps; RF Power 20dBm(Maximum)
    Maximum Connected Devices 3~6(According to the Environment and Connection Distance)
    White Balance One Push White Balance
    Color Technique Ultra-Fine Color Engine (WiFi)
    Recording System Still Picture or Movie (WiFi)
    Max. frames per second (fps*) 25fps@1920x1080
