Motic

Motic MOTICAM 4000 Microscope Camera

$1,143.00
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Discover our newest Moticam 4000, designed for efficiency and to output fast live images at 4K (3840 x 2160 px).

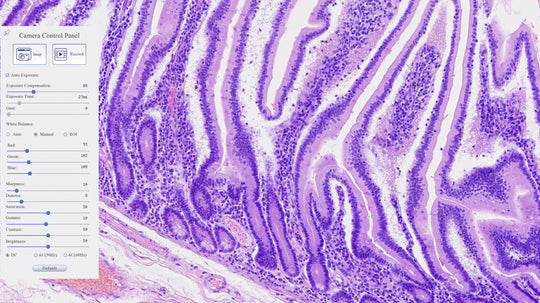

Connect it through the HDMI port to a screen and display your live image. With the use of the on-board software and a USB mouse, you can make live measurements, notes, image adjustments and more, directly on the HDMI screen, without the need for a computer.

Thanks to its integrated SD card slot and USB ports, saving images won't require a computer, making it easy to save and organize your images and videos. You can also connect your camera through USB to a Windows, or Mac computer, and even display your samples simultaneously.

    Specifications

    Model Moticam 4000
    Sensor type CMOS IMX334
    Sensor size 1/1.8"(8.86mm)
    Imaging area 7.68x4.32mm
    Capture resolution info 8MP (3840x2160 pixels)
    Image capture resolution (on SD-card) 8MP (3840x2160 pixels)
    Video capture resolution (on SD-card) 4K (3840x2160 pixels)
    Live display mode through USB 4K (3840x2160 pixels)
    Live display mode through HDMI 4K (3840x2160 pixels)
    Pixel Size 2.0x2.0μm
    Scan mode Progressive
    Shutter mode Rolling Shutter
    Data transfer HDMI, SD card, USB (data storage)
    Max. frames per second (fps*) HDMI: 4K (3840x2160) @ 30fps ; USB: 4K (3840x2160) @ 20fps
    Exposure time 0.04~1000ms
    Operating temperature From -10 to +50 Degrees Celsius non-condensing
    Sensitivity 505mV with 1/30s; 0.1mV with 1/30s
    Slot SD Card
    Buttons On/Off
    Supported OS Windows 7/8/10, MAC OSX or higher
    Minimum computer requirements Core2, 2.8GHz, RAM memory 8GB
    Lens mount C-Mount
    Focusable lens 12mm
    Software  Motic Images Plus 3.1 for Windows, OSX and Linux, on board software
    Functions Including exposure, gain, white balance, colour adjustment, sharpness and denoising control, zoom, mirror, comparison, freeze, measure, cross, browser function
    Power supply 12V (External Power supply)
    Package includes CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, Motic 4-dot calibration slide, macro calibration card, macro tube, universal power supply, HDMI cable, USB cable, USB Mouse and USB Pendrive with Motic Image Plus 3.1
    (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements.
