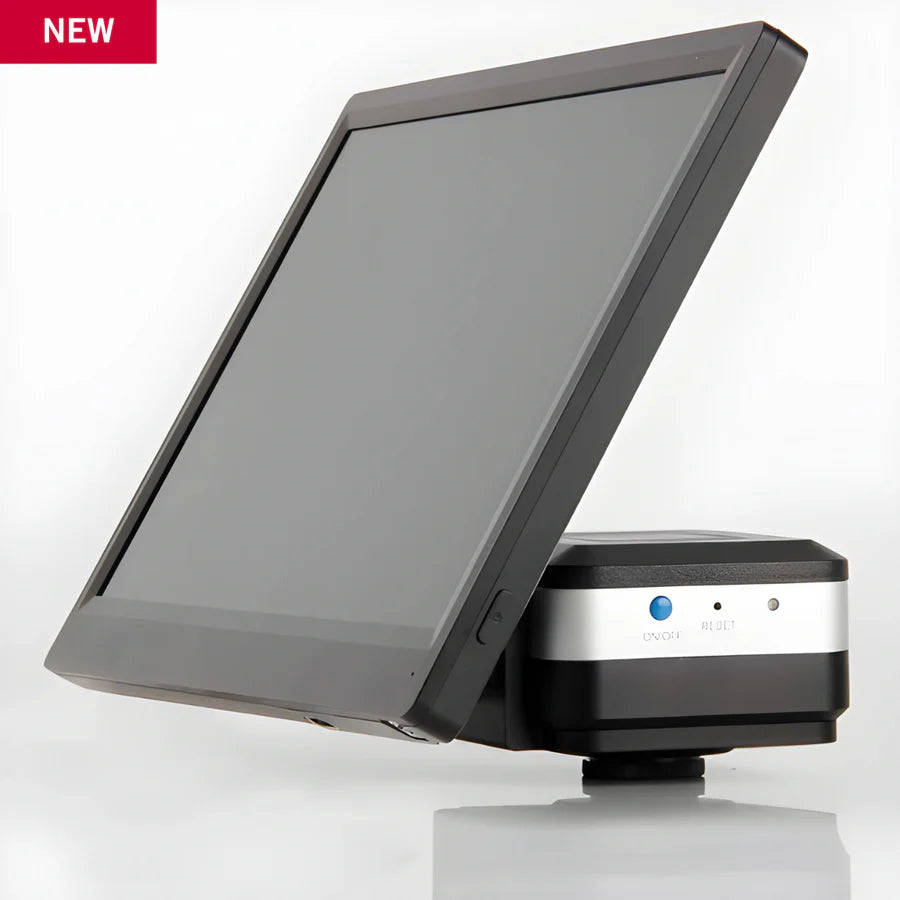

Motic Moticam 4000X 8 MP 4K HDMI USB Wi-Fi Microscope Camera
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
The Moticam 4000X is an 8 MP digital microscope camera for standalone 4K imaging, HDMI display, and connected documentation. Onboard software enables live measurement, annotations, and image adjustment with a USB mouse, without requiring a computer.
Key Specifications and Compatibility
- 8 MP CMOS sensor with 3840 × 2160 capture resolution
- 4K HDMI output up to 30 fps under optimal conditions
- HDMI, USB, Wi-Fi and Ethernet connectivity
- C-mount lens interface
- Onboard software with image capture and measurement
- Micro SD card recording
Original Product Details
Moticam 4000X - True 4K Imaging
The Full HD affordable multi-tasking microscopy camera. The Moticam 4000X is dedicated to documentation of microscopic results with a clear focus on maximum colour fidelity and fast live image.
It does not require a computer for standard operation, as it comes with softwares that will allow you to use it by simply connecting it to a screen through its HDMI port, and with a mouse connected to the USB port of the camera.
| Model | Moticam 4000X |
| Sensor type | CMOS |
| Sensor size | 1/2.8" |
| Light sensitive area | Diagonal 6.4mm |
| Capture resolution | 8MP (3864x2228 pixels) |
| Pixel Size | 1.45 x 1.45μm |
| Scan mode | Progressive |
| Shutter mode | Rolling Shutter |
| Interface and key functions | |
| USB 2.0 | Female Type-A Port - Computer, Mouse Support |
| USB 3.0 | Female Type-A Port - Computer, UVC |
| HDMI | 3840x2160 @ 30HZ |
| Network port | 100Mbps RJ45 (no indicator) |
| SD card | SD2.0, SD3.0 support (SDHC, SDXC card support) |
| Power button | On/Off switch |
| WIFI reset button | Long press to reset |
| LED indicator | Red light: power indicator, always on when power on standby Green light: power on indicator, blinking when power on, always on after power on |
| Video encoding | |
| WIN/MAC | MJPG/H264 |
| USB 2.0 and USB 3.0 | 3840x2160 @ 30fps 1920x1080 @ 30fps 960x540 @ 30fps |
| *Frames per second under optimal lighting conditions and in compliance with computer technical requirements. | |
