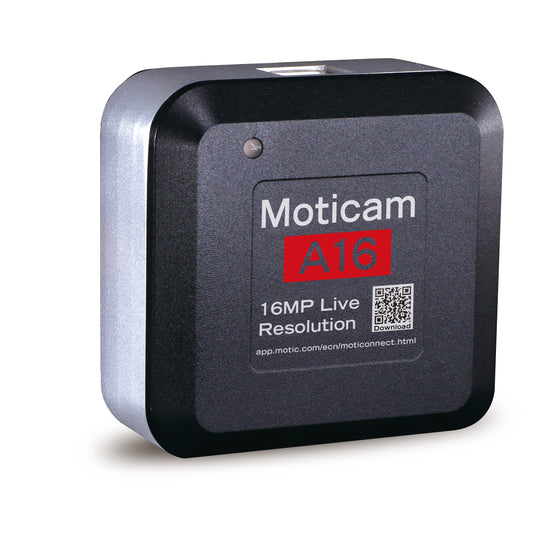

Motic Moticam A16 Digital Microscope Camera

$659.01
Sale $773.33 $659.01
CONTACT US: Need help choosing the right microscope, laboratory or medical equipment? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

The Moticam A16 is a digital microscope camera intended for high-resolution image documentation and sharing from a compatible microscope. It is suited to applications where detailed still images are important, including education, biological microscopy, and industrial inspection.

Key Features and Applications

  • Digital camera for microscope image capture and documentation
  • Suitable for teaching, presentations, and inspection records
  • Check the specifications below for actual sensor resolution and data interface
  • Verify C-mount and other adapter requirements for the intended microscope

Refer to the original specifications below for the exact supplied configuration and accessories.

With a 1/2” sCMOS sensor, the Moticam A16 not only captures 16MP images, but also provides up to 4608x3456 pixel live feed at up to 15fps making this the ultimate affordable package for live imaging, documentation or analysis.

    Specifications

    Camera

    A1

    A2

    A5

    A8

    A16
    Sensor Type

    sCMOS
    Sensor Size

    1 / 3.1"

    1 / 3.1"

    1 / 2.8"

    1 / 3"

    1 / 2.3"
    Capture Resolution

    1MP

    2MP

    5MP

    8MP

    16MP
    Live Display Modes

    1280x720,
    1024x768

    1920x1080, 1280x720

    2592x1944,
    2048x1536, 1920x1080

    3840x2160, 1920x1080

    4608x3456,
    3263x2448, 1920x1080
    Pixel Size

    4.1x4.1 micron

    2.7x2.7 micron

    2x2 micron

    1.34x1.34 micron

    1.34x1.34 micron
    Max. FPS

    30fps @ 1280x720

    30fps @ 1024x768

    30fps @ 1920x1080

    30fps @ 1280x720

    30fps @ 2592x1944

    30fps @ 1920x1080

    15fps @ 3840x2160

    30fps @ 1920x1080

    15fps @ 4608x3456

    30fps @ 1920x1080
    Lens Mount

    C-Mount
    Additional Support

    TWAIN, SDK, DS Driver
    Operating System

    Windows 10 or higher, OSX10.9 or higher
    Software

    MotiConnect available for free download. Free Updates included.
    Included Accessories

    Focusable Lens, 30mm & 38mm Eyepiece Adapters, Calibration Slide, Macro Viewing Tube, C-Ring, USB Cable, Dust Cap

    Official Motic Brochures and Documentation

    View Motic's manufacturer product information and available documentation. Manufacturer PDFs should be matched to the exact model before adding direct download links.

    Shipping & Lead Time Notice: All Motic products are new and ship directly from the manufacturer. Any stated lead times are estimates only, not guaranteed delivery dates. Processing, availability, and shipping times may vary.

    Additional Manufacturer PDF Brochures
