Home » Motic Moticam A5 USB Microscope Camera | 5 MP
Motic MOTICAM A5 Microscope Camera - microscopemarketplace
Motic MOTICAM A5 Microscope Camera - microscopemarketplace
Motic

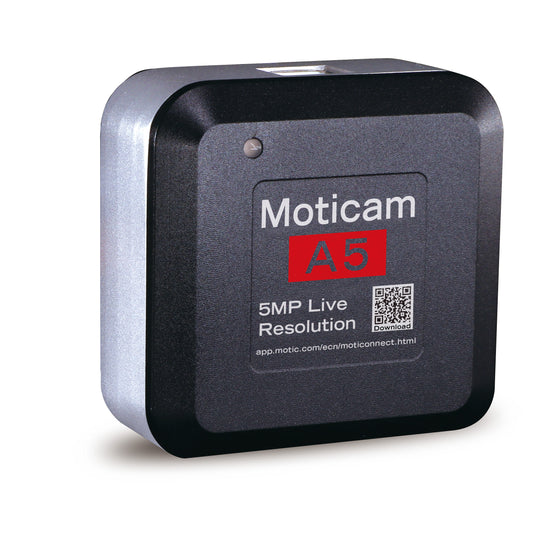

Motic Moticam A5 USB Microscope Camera | 5 MP

$497.14
Sale $583.38 $497.14
CONTACT US: Need help choosing the right microscope, laboratory or medical equipment? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

The Moticam A5 is a 5 MP sCMOS digital microscope camera designed for detailed image capture in education, routine laboratories, and quality control. Its USB connection supports live display, still-image documentation, and video from a compatible microscope.

Key Features and Applications

  • 5 MP (2592 × 1944) capture resolution at up to 30 fps
  • 1/2.8-inch sCMOS sensor
  • USB 2.0 data transfer and C-mount interface
  • MotiConnect software for capture, measurement, and image adjustment

See the specifications below for the exact configuration and included accessories.

At full 5MP live resolution, the Moticam A5 delivers up to 30 frames per second at 2592x1944 pixels per frame. Given its higher pixel count as well as sensitive sCMOS construction, the Moticam A5 performs well in many different contrasting techniques.

    Specifications

    Camera

    A1

    A2

    A5

    A8

    A16
    Sensor Type

    sCMOS
    Sensor Size

    1 / 3.1"

    1 / 3.1"

    1 / 2.8"

    1 / 3"

    1 / 2.3"
    Capture Resolution

    1MP

    2MP

    5MP

    8MP

    16MP
    Live Display Modes

    1280x720,
    1024x768

    1920x1080, 1280x720

    2592x1944,
    2048x1536, 1920x1080

    3840x2160, 1920x1080

    4608x3456,
    3263x2448, 1920x1080
    Pixel Size

    4.1x4.1 micron

    2.7x2.7 micron

    2x2 micron

    1.34x1.34 micron

    1.34x1.34 micron
    Max. FPS

    30fps @ 1280x720

    30fps @ 1024x768

    30fps @ 1920x1080

    30fps @ 1280x720

    30fps @ 2592x1944

    30fps @ 1920x1080

    15fps @ 3840x2160

    30fps @ 1920x1080

    15fps @ 4608x3456

    30fps @ 1920x1080
    Lens Mount

    C-Mount
    Additional Support

    TWAIN, SDK, DS Driver
    Operating System

    Windows 10 or higher, OSX10.9 or higher
    Software

    MotiConnect available for free download. Free Updates included.
    Included Accessories

    Focusable Lens, 30mm & 38mm Eyepiece Adapters, Calibration Slide, Macro Viewing Tube, C-Ring, USB Cable, Dust Cap

    Manufacturer Brochures and Documentation

    Official Motic product information and available brochure, specification sheet, and manual downloads.

    Shipping & Lead Time Notice: All Motic products are new and ship directly from the manufacturer. Any stated lead times are estimates only, not guaranteed delivery dates. Processing, availability, and shipping times may vary.

    Manufacturer Brochures and Technical Documents
