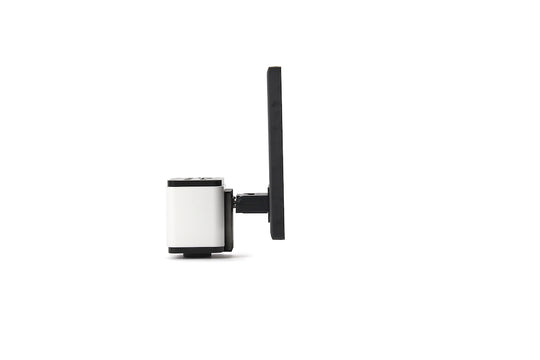

Motic MOTICAM BMH4000 Microscope Camera

$1,441.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

The Moticam BMH4000 is a camera that was designed for ease of use and the ability to output fast live images at 4k(3840x2160) pixels in full HD.

Unlike other cameras, the Moticam BMH4000 can be connected to a computer or through HDMI. Simply plug the camera through the HDMI port and display images with the use of the onboard software and a USB mouse through the built-in 11.6" LCD screen, or connect your camera through USB to a Windows, Mac or Linux computer.

By having an integrated SD card slot, not only does saving images not require a computer, but it also allows flexibility to save portable data.

    Specification

    Model Moticam BMH4000
    Sensor type IMX334
    Sensor size 1/1.8"(8.86mm)
    Imaging area Imaging Area 7.68 x 4.32mm
    Capture resolution  8MP
    Pixel Size 2.0 x 2.0μm
    Scan mode Progressive
    Shutter mode Rolling Shutter
    G Sensitivity Dark Signal 505 mv with 1/30s; 0.1 mv with 1/30s
    Exposure time 0.04~1000ms
    Operating temperature From -10 to +50 Degrees Celsius non-condensing
    Operating humidity 30~80%RH
    Lens mount C-Mount
    Screen 11.6" native 1920x1080 pixels full HD screen with bracket
    Software  Motic Images Plus 3.1 for Windows/Mac OS
    Package includes 12V Power Adapter, CS Ring, Motic 4-dot Calibration Slide, HDMI Cable, Manual, 12mm lens, Adapter φ30/ φ38, Macro Tube
    INTERFACE & BUTTON FUNCTIONS
    USB Mouse USB Mouse Input
    USB Video USB Video Output
    USB Data Storage
    HDMI HDMI Output
    DC12V DC12V Power in
    SD SD SD Card Slot
    ON/OFF Power On/Off Switch
    LED Power Off Red,Power On Blue
    SPECIFICATION FOR HDMI OUTPUT
    UI Operation With USB Mouse
    Image Capture JPEG/TIFF Format with 4K(3840*2160) Resolution in SD Card
    Video Record 4K(30fps@3840*2160) H264/H265 encoded MP4 file in SD Card
    Camera Control Panel Including Exposure, Gain, White Balance, Color Adjustment, Sharpness and Denoising Control
    Toolbar Including Zoom, Mirror, Comparison, Freeze, Measurement, Cross, Browser Function
    Max. frames per second (fps*) 30fps@3840*2160; 30fps@1920*1080
    SPECIFICATION FOR USB OUTPUT
    UI Operation Motic Image Plus 3.1
    White Balance Auto White Balance
    Color Technique Ultra-FineTM Color Engine
    Recording System Still Picture or Movie
    Max. frames per second (fps*) 20fps@3840*2160
    PC Requirements CPU: Intel Core2 2.8GHz or Higher, Memory: 8GB or More, Display: 19" or Larger, Operating System: Windows 10/Mac OS X/Linux
