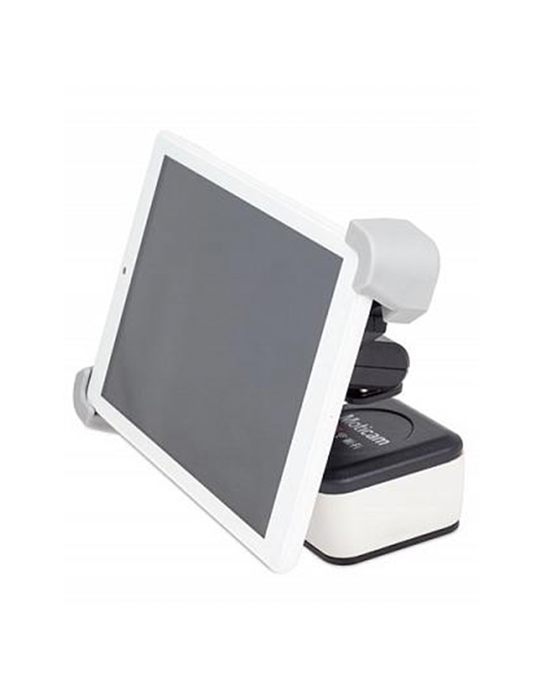

Motic MOTICAM BTI10 Microscope Camera

$1,053.00
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

The Moticam BTI10 unlike other Moticams is combined with a 4.0MP and a 10" Android tablet that will deliver fast live images up to 30 fps on any trinocular microscope with the right C-mount adapter.

With the convenience of a detachable tablet and WiFi image data transfer, the flexibility to capture images and bring your images anywhere has never been so easy.

By using our pre-installed app, MotiConnect, simply log on with your tablet and begin to capture, edit, and save your images.

    Specifications

    Model Moticam BTI10
    Camera Specifications
    Sensor Type CMOS
    Sensor Size 1/3"
    Imaging Area 5.44x3.07mm
    Capture Resolution Info 4MP (2592x1520 pixels)
    Live display mode through Wi-Fi 1280x720, 1920x1080 pixels (Full HD)
    Live display mode through Ethernet 1280x720, 1920x1080 pixels (Full HD)
    Pixel size 2.0x2.0μm
    Scan mode Progressive
    Data transfer Wi-Fi (2.4 & 5 GHz), Ethernet
    Max. frames per second (fps) 1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength)
    Exposure time 0.03 msec to 0.03 sec
    Operating temperature From 0 to +60 Degrees Celsius non condensing
    Max. signal to noise ratio 38.3dB
    Dynamic range 64.6dB
    Sensitivity 1.9V/Lux-sec (550nm)
    Buttons On/Off
    Support device Universal Web browser (HTML5)
    Supported OS Windows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higher
    Minimum computer requirements 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
    Lens mount C-Mount
    Screen 10" IPS Tablet
    Software MotiConnect App for iOS and Android (pre-installed)
    Functions Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
    Power supply 12V (External Power supply)
    Tablet bracket holder For tablets from 7” to 10”
    Package includes USB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)
    Tablet Specifications
    Size (mm) 218x136x10mm
    System Android 10
    Pre-installed App MotiConnect
    Language Multi-Language
    CPU 2.0GHz 8-core
    RAM 6GB DDR3
    NAND Flash 128GB
    Display 10" (IPS) 16:10 Ratio
    Display resolutions 1920x1200
    Touch Panel Capacitive Multi-Touch Screen
    GPU MALI-G720 MP3
    Ports MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)
    Speaker 8Ω/0.7Wx2
    Mic MIC (Internal)
    Wi-Fi 802.11b/g/n
    Bluetooth 4.0
    Camera Front (5M Pixels) + Rear (8M Pixels)
    Support display format MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM
    Support audio format MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
    Picture format JPG, JPEG, GIF, BMP, PNG
    Battery 3.7V/3500mAh Rechargeable Battery
    Power supply tablet Input：AC100-240V. 50-60HZ - Output: DC5V 2A (Support USB port charging）
    Certifications FCC CE
    Color White
