Home » Motic MOTICAM BTI8 Microscope Camera
Motic MOTICAM BTI8 Microscope Camera - microscopemarketplace
Motic MOTICAM BTI8 Microscope Camera - microscopemarketplace
Motic

Motic MOTICAM BTI8 Microscope Camera

$750.00
Don't see the option you are looking for? Call 919-775-5596

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

Have questions or need Faster Shipping? Call 919-775-5596

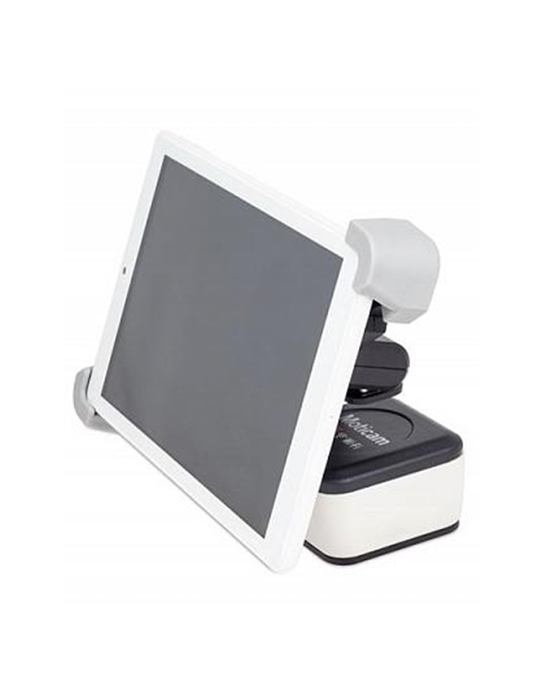

The Moticam BTI8 combines a space-saving camera hardware with new Wi-Fi technology.

The 4MP Wi-Fi camera comes together with an 8” Android tablet to deliver fast live images (up to 30 fps) on any microscope with a vertical photo tube.

This setup is perfect for the immediate presentation of image results to a greater public in your lab. Detaching the tablet for an even more flexible application is possible thanks to the Wi-Fi data transfer.

Use the pre-installed MotiConnect App and get ready to capture, edit and share your microscope images from the tablet in a few taps.

    Specifications

    Model Moticam BTI8
    Camera Specifications
    Sensor Type CMOS
    Sensor Size 1/3"
    Imaging Area 5.44x3.07mm
    Capture Resolution Info 4MP (2592x1520 pixels)
    Live display mode through Wi-Fi 1280x720, 1920x1080 pixels (Full HD)
    Live display mode through Ethernet 1280x720, 1920x1080 pixels (Full HD)
    Pixel size 2.0x2.0μm
    Scan mode Progressive
    Data transfer Wi-Fi (2.4 & 5 GHz), Ethernet
    Max. frames per second (fps) 1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength)
    Exposure time 0.03 msec to 0.03 sec
    Operating temperature From 0 to +60 Degrees Celsius non condensing
    Max. signal to noise ratio 38.3dB
    Dynamic range 64.6dB
    Sensitivity 1.9V/Lux-sec (550nm)
    Buttons On/Off
    Support device Universal Web browser (HTML5)
    Supported OS Windows XP/Vista/7/8/10, MAC OSX, Android 4,0 or higher, iOS7 or higher
    Minimum computer requirements 2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
    Lens mount C-Mount
    Screen 8" IPS Tablet
    Software Motic Images Plus 3.0 for Windows, OSX and Linux, MotiConnect App for iOS and Android
    Functions Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
    Power supply 5V (External Power supply)
    Tablet bracket holder For tablets from 7” to 10”
    Package includes USB cable, Motic 4-dot calibration slide, universal power supply 100V-240V (CE)
    Tablet Specifications
    Size (mm) 209x126x9.9mm
    System Android 5.1
    Pre-installed App MotiConnect
    Language Multi-Language
    CPU 1.3GHz Quad core
    RAM 1GB DDR3
    NAND Flash 8GB
    Display 8" (IPS) 16:10 Ratio
    Display resolutions 1280x800
    Touch Panel Capacitive Multi-Touch Screen
    GPU MALI-T720 MP2
    Ports MicroSD/MMC/TF Card (Support up 64 GB), 3.5mm Audio, USB-C (USB OTG and Charging)
    Speaker 8Ω/0.7Wx2
    Mic MIC (Internal)
    Wi-Fi 802.11b/g/n
    Bluetooth 4.0
    Camera Front (VGA) + Rear (2M Pixels)
    Support display format MPEG-1/2 (DAT, MPG, VOB, TS), MPEG-4, H.263 (3GP, MOV, MP4), H.264 (AVI, MKV, MP4, MOV, 3GP), RM, RMVB, FLV, WEBM
    Support audio format MP3, WMA, MP2, OGG, AAC, M4A, OGA, FLAC, APE, MP1, WAV
    Picture format JPG, JPEG, GIF, BMP, PNG
    Battery 3.7V/3500mAh Rechargeable Battery
    Power supply tablet Input：AC100-240V. 50-60HZ - Output: DC5V 2A (Support USB port charging）
    Certifications FCC CE
    Color White
