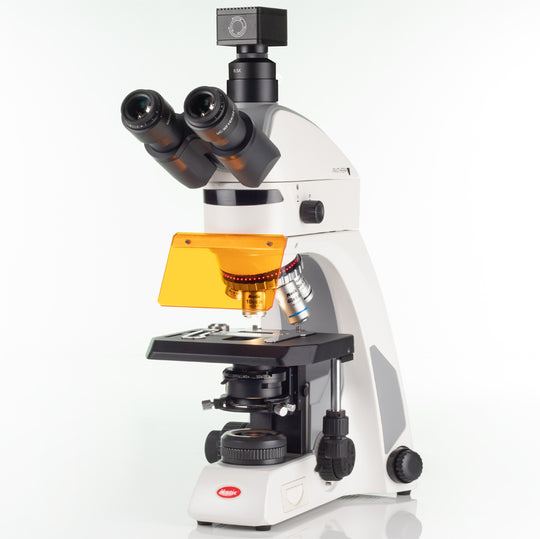

Motic MOTICAM PROS5 Plus Microscope Camera

$2,285.00
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Moticam Pro S5 Plus presents a 2/3” sensor with 5MP at a maximized frame rate up to 70 fps in full resolution. The peak of Motic's Pro Series, this camera covers all important aspects of a professional imaging solution: resolution for detailed information, speed to grab moving/living organisms, a large format sensor to cover large areas in a single shot.

    Specifications

    Model S1 S3 S6 S12 S20 Pro S5 Lite Pro S5 Plus
    Sensor Type

    sCMOS
    Sensor Size 1/3" 1/2.8" 1/1.8" 1/1.7" 1" 2/3" 2/3"
    Imaging Area 6.09mm (Diagonal) 6.44mm (Diagonal) 8.92mm (Diagonal) 9.33mm (Diagonal) 15.86mm (Diagonal) 11.1mm (Diagonal) 11.1mm (Diagonal)
    Capture Resolution Info 1.2MP 3MP 6MP 12Mp 20MP 5MP 5MP
    Live display mode through USB (pixels) 1280x960, 640x480 2048x1536, 1920x1080 3072x2048, 1536x1024 4000x3000, 2048x1080 5472x3648, 2736x1824 2448x2048, 1224x1024 2448x2048, 1224x1024
    Pixel size 3.75x3.75μm 2.5x2.5μm 2.4x2.4μm 1.85x1.85μm 2.4x2.4μm 3.45x3.45μm 3.45x3.45μm
    Scan mode

    Progressive
    Shutter mode Rolling Shutter  Rolling Shutter Rolling Shutter Rolling Shutter  Rolling Shutter Global Shutter Global Shutter
    Data transfer

    USB 3.1
    Max. frames per second (fps*) 1280x960 @ 120fps, 640x480 @ 240fps 2048x1536 @ 60fps, 1920x1080 @ 60fps 3072x2048 @ 30fps, 1536x1024 @ 50fps 4000x3000 @ 25fps, 2048x1080 @ 50fps 5472x3648 @ 18fps, 2736x1824 @ 50fps 2448x2048 @ 37.5fps, 1224x1024 @ 88.4fps 2448x2048 @ 68.3fps, 1224x1024 @ 175.8fps
    Exposure time 15 μsec to 2 sec 21 μsec to 2 sec 16 μsec to 2 sec 22 μsec to 2 sec 15 μsec to 2 sec 14 μsec to 2 sec 7 μsec to 2 sec
    Operating temperature

    From -10 to +60 Degrees Celsius non condensing
    Sensitivity 2350mV(G) @ 1/30 sec 600mV(G) @ 1/30 sec 425mV(G) @ 1/30 sec 280mV(G) @ 1/30 sec 461mV(G) @ 1/30 sec 1146mV(G) @ 1/30 sec 1146mV(G) @ 1/30 sec
    Support device

    TWAIN, SDK and DirectShow Driver
    Supported OS

    Microsoft Windows 7/8/10, MAC OSX, Linux or higher
    Minimum computer requirements

    2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB
    Lens mount

    C-Mount
    Software

    Motic Images Plus 3.0 for Windows, OSX and Linux
    Functions

    Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system
    Power supply

    5V (from USB Port)
    Package includes

    CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for Windows/OSX/Linux
    (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements.
