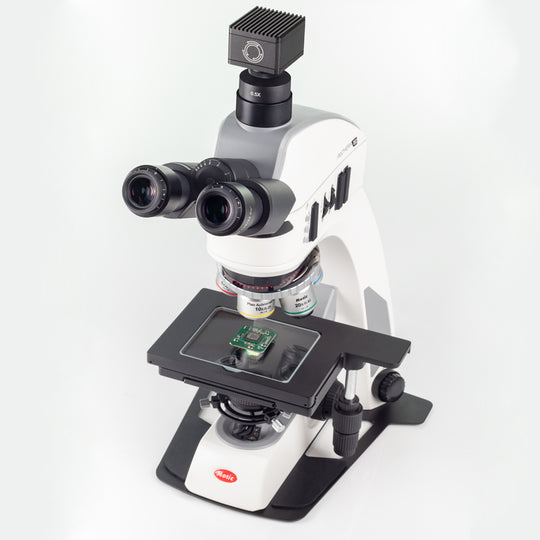

The Moticam S6 is a 6 MP sCMOS microscope camera designed for high-resolution documentation of specimens in laboratories, research, and education. Its USB 3.1 interface supports digital imaging with compatible C-mount microscope systems.
Key Features and Applications
- 6 MP sCMOS imaging with 3072 × 2048 capture resolution
- USB 3.1 interface for data transfer
- Up to 30 fps at full resolution under optimal conditions
- C-mount camera for compatible microscope adapters
Check the specifications below for exact included accessories, compatibility and configuration.
| Model | S1 | S3 | S6 | S12 | S20 | Pro S5 Lite | Pro S5 Plus |
| Sensor Type |
sCMOS |
||||||
| Sensor Size | 1/3" | 1/2.8" | 1/1.8" | 1/1.7" | 1" | 2/3" | 2/3" |
| Imaging Area | 6.09mm (Diagonal) | 6.44mm (Diagonal) | 8.92mm (Diagonal) | 9.33mm (Diagonal) | 15.86mm (Diagonal) | 11.1mm (Diagonal) | 11.1mm (Diagonal) |
| Capture Resolution Info | 1.2MP | 3MP | 6MP | 12Mp | 20MP | 5MP | 5MP |
| Live display mode through USB (pixels) | 1280x960, 640x480 | 2048x1536, 1920x1080 | 3072x2048, 1536x1024 | 4000x3000, 2048x1080 | 5472x3648, 2736x1824 | 2448x2048, 1224x1024 | 2448x2048, 1224x1024 |
| Pixel size | 3.75x3.75μm | 2.5x2.5μm | 2.4x2.4μm | 1.85x1.85μm | 2.4x2.4μm | 3.45x3.45μm | 3.45x3.45μm |
| Scan mode |
Progressive |
||||||
| Shutter mode | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Rolling Shutter | Global Shutter | Global Shutter |
| Data transfer |
USB 3.1 |
||||||
| Max. frames per second (fps*) | 1280x960 @ 120fps, 640x480 @ 240fps | 2048x1536 @ 60fps, 1920x1080 @ 60fps | 3072x2048 @ 30fps, 1536x1024 @ 50fps | 4000x3000 @ 25fps, 2048x1080 @ 50fps | 5472x3648 @ 18fps, 2736x1824 @ 50fps | 2448x2048 @ 37.5fps, 1224x1024 @ 88.4fps | 2448x2048 @ 68.3fps, 1224x1024 @ 175.8fps |
| Exposure time | 15 μsec to 2 sec | 21 μsec to 2 sec | 16 μsec to 2 sec | 22 μsec to 2 sec | 15 μsec to 2 sec | 14 μsec to 2 sec | 7 μsec to 2 sec |
| Operating temperature |
From -10 to +60 Degrees Celsius non condensing |
||||||
| Sensitivity | 2350mV(G) @ 1/30 sec | 600mV(G) @ 1/30 sec | 425mV(G) @ 1/30 sec | 280mV(G) @ 1/30 sec | 461mV(G) @ 1/30 sec | 1146mV(G) @ 1/30 sec | 1146mV(G) @ 1/30 sec |
| Support device |
TWAIN, SDK and DirectShow Driver |
||||||
| Supported OS |
Microsoft Windows 7/8/10, MAC OSX, Linux or higher |
||||||
| Minimum computer requirements |
2GHz dualcore - RAM memory 2GB - Video memory min. 512 MB |
||||||
| Lens mount |
C-Mount |
||||||
| Software |
Motic Images Plus 3.0 for Windows, OSX and Linux |
||||||
| Functions |
Still image and video capture, live and still image measurement, image adjustments, white balance, automatic & manual exposure, individual objective calibration system |
||||||
| Power supply |
5V (from USB Port) |
||||||
| Package includes |
CS ring adaptor, USB 3.1 cable, Motic 4-dot calibration slide, Motic Images Plus 3.0 for Windows/OSX/Linux |
||||||
| (*) Frames per second under optimal lighting conditions and in compliance with computer technical requirements. | |||||||
