Motic

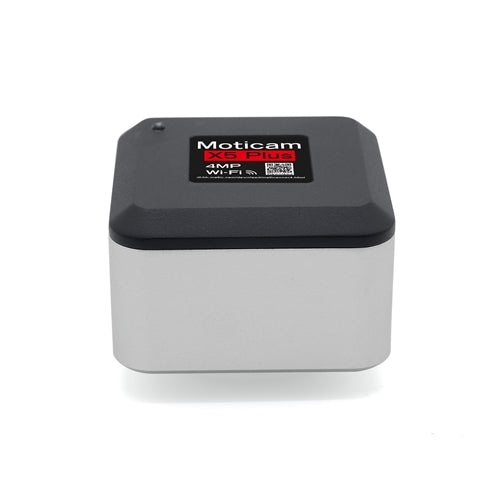

Motic MOTICAM X5 PLUS Microscope Camera

$422.00
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

The Moticam X5 Plus is a high resolution streaming WiFi camera. By creating its own WiFi signal, simply connect with your Android or iOS device and view, capture, and edit live images from your microscope with our free MotiConnect app.

    Specifications

    Model Moticam X5 Plus
    Sensor type CMOS
    Sensor size 1/3"
    Imaging area 5.44x3.07mm
    Capture resolution 4MP (2592x1520 pixels)
    Live display mode through Wi-Fi 1280x720, 1920x1080 pixels (Full HD)
    Live display mode through Ethernet 1280x720, 1920x1080 pixels (Full HD)
    Pixel size 2.0x2.0µm
    Scan mode Progressive
    Data transfer Wi-Fi (2.4 & 5 GHz), Ethernet
    Max. frames per second (fps) 1920x1080 @ 30 fps, 1280x960 @ 30 fps (depending on Wi-Fi strength)
    Exposure time 0.03 msec to 0.03 sec
    Operating temperature From 0 to +60 degrees celsius non condensing
    Max. signal to noise ratio 38.3dB
    Dynamic range 64.6dB
    Sensitivity 1.9V/Lux-sec
    Buttons On/Off
    Support device Universal Web browser (HTML5)
    Supported OS Windows XP/Vista/7/8/10 and MAC OSX, Linux, Android 4.0 or higher, iOS 7 or higher
    Minimum computer requirements 2GHz dual core - RAM memory 2GB - Video memory min. 512 MB
    Lens mount C-Mount
    Focusable lens 12mm
    Software Motic Images Plus 3.0 for Windows, OSX and Linux, MotiConnect App for iOS and Android
    Functions Still image and video capture, live and still image measurements, image adjustments, white balance, automatic & manual exposure, individual objective calibration system.
    Power supply 12V (External Power supply)
    Package includes CS ring adaptor, focusable lens, 30mm and 38mm eyepiece adapters, USB 2.0 cable, Motic 4 dot calibration slide, macro tube, Motic Images Plus 3.0 PC/OSX/Linux
