Home » Motic NIR Plan Apo 50X/0.42 Objective, WD 19 mm | 1101001703541

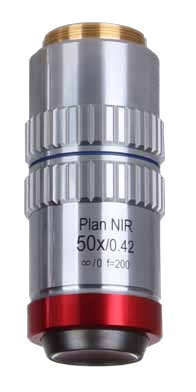

MOTIC Near Infrared Ray Objective NIR 50X/0.42 (WD=19mm) | (1101001703541) - Microscope Marketplace
MOTIC Near Infrared Ray Objective NIR 50X/0.42 (WD=19mm) | (1101001703541) - Microscope Marketplace
Motic

Motic NIR Plan Apo 50X/0.42 Objective, WD 19 mm | 1101001703541

$4,157.00
CONTACT US: Need help choosing the right microscope, laboratory or medical equipment? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

The Motic NIR Plan Apo 50X objective is designed for near-infrared inspection on compatible PSM1000 Series systems. Its 19 mm working distance and 0.42 numerical aperture are specified for the listed configuration.

Key Features and Technical Specifications

  • 50X magnification and 0.42 numerical aperture
  • 19 mm working distance
  • Infinity-corrected plan apochromatic optics
  • Mounting thread: M26X0.706
  • Designed for PSM1000 Series
  • Manufacturer part number: 1101001703541
  • Near-infrared inspection optics

Compatibility: Confirm the optical system and objective thread before ordering; BD M32 objectives are not interchangeable with RMS-thread LM Plan objectives without an appropriate system configuration.

Original Manufacturer Specifications

Near Infrared Ray Objective NIR 50X/0.42 (WD=19mm) for PSM1000 Series

Specification

Model Near Infrared Ray Objective NIR 50X/0.42 (WD=19mm)
Objective mounting thread M26X0.706
Objective type Plan apochromat
Objective tube length Infinity
Objective magnification 50X
Objective N.A. 0.42
Objective W.D. 19 mm
Objective coverglass thickness NCG
Objective contrast technique Infrared
Valid for PSM1000 Series

Motic Manufacturer Documentation

Official Motic objective specifications and compatibility guide (search by manufacturer part number).
