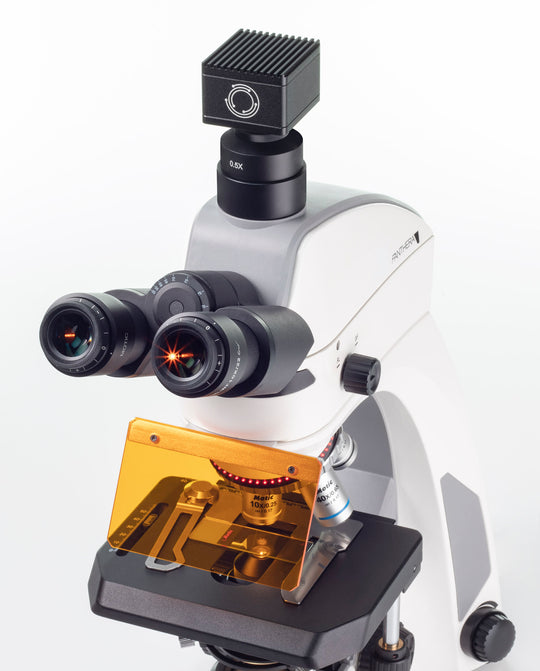

Motic PANTHERA C2 W/ FLED Fluorescence Microscope

$7,469.55
Head
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

Panthera FLED is the most recent member of the Motic Panthera Microscope Series. Using its modular design and versatile functional modules, it allows a very high degree of customer specific selection of capabilities. Panthera FLED can be fitted with a fully Digital work environment featuring touchscreen and wireless operation as well as with a very simple base stand with nothing but a moving Z-Stage in order to provide the most cost efficient solution. Panthera FLED can be used with different single Wavelength modules (FITC fluorescein or TRITC Rhodamine or Auramine O), user can simply slide in a different Wavelength module and continue his work with a different Fluorescence application. Please see the specification section below to select the filter cube combination.

    Specifications

    Model Panthera C2 Binocular Panthera C2 Binocular (without 100X) Panthera C2 Trinocular Panthera C2 Trinocular(without 100X)
    Optical system Color Corrected Infinity Optical System (CCIS®) Color Corrected Infinity Optical System (CCIS®) Color Corrected Infinity Optical System (CCIS®) Color Corrected Infinity Optical System (CCIS®)
    Observation tube  Binocular head, Siedentopf type, 360° swiveling Binocular head, Siedentopf type, 360° swiveling Trinocular head, Siedentopf type, 360° swiveling Trinocular head, Siedentopf type, 360° swiveling
    Inclination  25° inclined, 360°  swiveling 25° inclined, 360°  swiveling 25° inclined, 360°  swiveling 25° inclined, 360°  swiveling
    Trinocular light split      Fixed 50:50 Fixed 50:50
    Interpupillary distance  48-75mm 48-75mm 48-75mm 48-75mm
    Diopter adjustment  On both eyepieces, +/- 5 diopter On both eyepieces, +/- 5 diopter On both eyepieces, +/- 5 diopter On both eyepieces, +/- 5 diopter
    Eyepieces  Widefield UC-WF10X/20mm with diopter adjustment  Widefield UC-WF10X/20mm with diopter adjustment  Widefield UC-WF10X/20mm with diopter adjustment  Widefield UC-WF10X/22mm with diopter adjustment
    Nosepiece  Reversed quintuple, coded  Reversed quintuple, coded  Reversed quintuple, coded  Reversed quintuple, coded
    Objective classification  CCIS® UC Plan Achromatic (Pb free) CCIS® UC Plan Achromatic (Pb free) CCIS® UC Plan Achromatic (Pb free) CCIS® UC Plan Achromatic (Pb free)
    Objectives  4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm) 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm)
    Objective mounting thread  W 4/5"x1/36" (RMS standard) W 4/5"x1/36" (RMS standard) W 4/5"x1/36" (RMS standard) W 4/5"x1/36" (RMS standard)
    Stand type  Upright  Upright  Upright  Upright
    Stage  Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder Compact mechanical stage with built-in low position rackless coaxial stage control and sample holder
    Stage size 185x145mm 185x145mm 185x145mm 185x145mm
    Travel range X&Y 75x50mm 75x50mm 75x50mm 75x50mm
    Condenser  Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders  Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders  Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
    Diaphragm  Iris diaphragm  Iris diaphragm  Iris diaphragm  Iris diaphragm
    Focus mechanism  Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment Coaxial coarse and fine focusing system with tension adjustment
    Fine focus precision  2μm 2μm 2μm 2μm
    Focusing stroke  25mm 25mm 25mm 25mm
    Upper limit stop  Upper limit stop preset but adjustable Upper limit stop preset but adjustable Upper limit stop preset but adjustable Upper limit stop preset but adjustable
    Filter holder  On top of the illuminator with fixing cap On top of the illuminator with fixing cap On top of the illuminator with fixing cap On top of the illuminator with fixing cap
    Transmitted illumination  Koehler LED 3W & Quartz halogen 6V/30W with intensity control Koehler LED 3W & Quartz halogen 6V/30W with intensity control Koehler LED 3W & Quartz halogen 6V/30W with intensity control Koehler LED 3W & Quartz halogen 6V/30W with intensity control
    Illumination interchangeability Halogen/LED and LED color temperature interchangeability Halogen/LED and LED color temperature interchangeability Halogen/LED and LED color temperature interchangeability Halogen/LED and LED color temperature interchangeability
    Illumination features  Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator Motic LightTracer: Light memory, sleep mode (auto on-off), nosepiece LED light intensity indicator
    Transformer  Internal  Internal  Internal  Internal
    Power supply  110-240V (CE) 110-240V (CE) 110-240V (CE) 110-240V (CE)
    Other features  USB 2.0 for external camera power USB 2.0 for external camera power USB 2.0 for external camera power USB 2.0 for external camera power
    Accessories included  Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module Dust cover, power cord, Allen key, blue filter, halogen bulb, LED module
    Dimensions LxWxH  282x210x396mm  282x210x396mm  282x210x396mm  282x210x396mm
    Net weight  8.4kg 8.4kg 8.4kg 8.4kg
    Filter Cube Options
    FLED Fluorescence Accessory, FITC Filter Standard filter cube FITC 470nm with LED module Condenser slider to block light Pair of rubber eye guards UL universal power supply *FOR MODELS U, L, C2 ONLY (Model C requires an external power supply), hexagonal allen key, vinyl dust cover.
    FLED Fluorescence Accessory, TRITC Filter Standard filter cube TRITC 525nm with LED module Condenser slider to block light  Pair of rubber eye guards UL universal power supply *FOR MODELS U, L, C2 ONLY. (Model C requires an external power supply), hexagonal allen key, vinyl dust cover.
    FLED Fluorescence Accessory, AO Filter Standard filter cube AURAMINE O 455nm with LED module Condenser slider to block light Pair of rubber eye guards UL universal power supply *FOR MODELS U, L, C2 ONLY. (Model C requires an external power supply), hexagonal allen key, vinyl dust cover.
