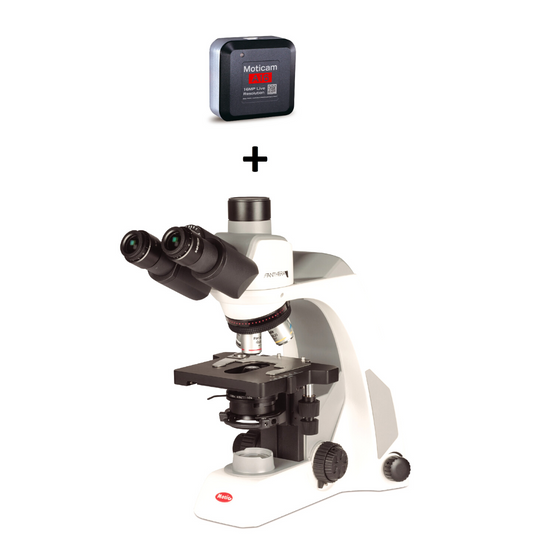

Motic PANTHERA E2 + MOTICAM A16 Bundle Microscope

$2,664.00
CONTACT US: Don't see the Microscope or part you are looking for? Call 919-775-5596 or email info@mundaymicroscope.com

Follow Us Online!

For an official Quote Email us at info@mundaymicroscope.com

International Buyers - Please Request Quote with ship to address

Have questions or need Faster Shipping? Call 919-775-5596

This limited time bundle special comes with:

  • Panthera E2 Trinocular
  • Moticam A16
  • Compatible C-mount adapter

Ideal for education use, the Panthera E2 has a rackless stage and a 360º rotatable head specially for space-saving storage. It has Plan UC optics and an extremely efficient low power illumination, allowing it to run on a mobile battery pack for several hours. The Panthera E2 is able to perform phase contrast and darkfield.

    Specification

    Model Panthera E2 Trinocular
    Observation tube Trinocular head, Siedentopf type, 360° swiveling
    Optical system Colour Corrected Infinity Optical System (CCIS®)
    Condenser Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders
    Darkfield Optional slider
    Diaphragm Iris diaphragm
    Diopter adjustment On both eyepieces, +/- 5 diopter
    Eyepieces Widefield N-WF10X/20mm with diopter adjustment
    Filter holder On top of the illuminator
    Fine focus precision 2µm
    Focus mechanism Coaxial coarse and fine focusing system with tension adjustment
    Focusing stroke 25mm
    Illumination features Nosepiece LED light intensity indicator
    Inclination 25° inclined, 360° rotating (storage saving), 360° swivelling
    Interpupillary distance 48-75mm
    Nosepiece Reversed quadruple
    Objective classification CCIS® SC Plan Achromatic, DIN
    Objective mounting thread W 4/5"x1/36" (RMS standard)
    Objectives 4X/0.10 (WD 15.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.14mm)
    Other features USB 2.0 for external camera power
    Phase contrast Optional slider
    Polarization Optional add-on
    Stage Mechanical stage with built-in low position rackless coaxial stage control and sample holder
    Stage size 140x135mm
    Stand type Upright
    Standard contrast technique Brightfield
    Transmitted illumination Fixed Koehler LED 1W with intensity control
    Travel range X&Y 75x40mm
    Upper limit stop Upper limit stop preset but adjustable
    Transformer Internal
    Power supply 110-240V (CE), USB 2.0 for battery pack
    Accessories included Dust cover, power cord, Allen key, immersion oil (5ml)
    Dimensions LxWxH 282x210x396mm
    Weight Net 7.5kg
