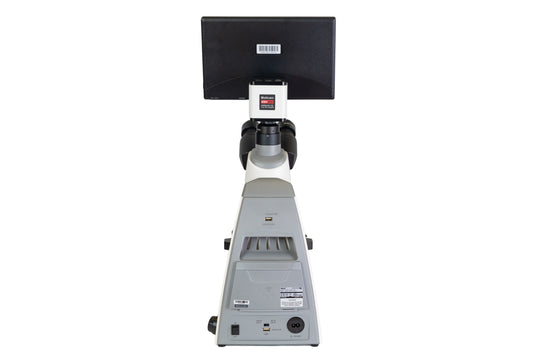

Motic PANTHERA E2 (Trinocular) + MOTICAM BMH4000 Bundle Microscope
Regular price
$3,410.00
Couldn't load pickup availability
Don't see the option you are looking for? Call 919-775-5596
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
Have questions or need Faster Shipping? Call 919-775-5596
This digital camera bundle comes with:
- Panthera E2 Trinocular
- Moticam BMH4000
- Compatible C-mount adapter
With the new microscope Series Panthera E2, your decision is distinct. This microscope series allows to experience Life Sciences in a new way, with best possible learning effect. From now on, you achieve your teaching goals in the easiest way, with highest precision and accuracy that meet all your intentions in mind. Even in a small lab with a small budget, these new technologies from Motic will convince you.
Specifications
| Model | Panthera E2 Trinocular |
| Optical system | Color Corrected Infinity Optical System (CCIS®) |
| Observation tube | Trinocular head, Siedentopf type, 360° swiveling |
| Inclination | 25° inclined, 360° rotating (storage saving), 360° swivelling |
| Trinocular light split | Fixed 50:50 |
| Interpupillary distance | 48-75mm |
| Diopter adjustment | On both eyepieces, +/- 5 diopter |
| Eyepieces | Widefield UC-WF10X/20mm with diopter adjustment |
| Nosepiece | Reversed quadruple |
| Objective classification | CCIS® UC Plan Achromatic (Pb free) |
| Objectives | 4X/0.10 (WD 30.5mm), 10X/0.25 (WD 17.4mm), 40X/0.65/S (WD 0.6mm), 100X/1.25/S-Oil (WD 0.16mm) |
| Objective mounting thread | W 4/5"x1/36" (RMS standard) |
| Stand type | Upright |
| Stage | Mechanical stage with built-in low position rackless coaxial stage control and sample holder |
| Stage size | 140x135mm |
| Travel range X&Y | 75x40mm |
| Condenser | Focusable and centerable Abbe condenser N.A. 0.90/1.25 with slot for contrast sliders |
| Diaphragm | Iris diaphragm |
| Focus mechanism | Coaxial coarse and fine focusing system with tension adjustment |
| Fine focus precision | 2μm |
| Focusing stroke | 25mm |
| Upper limit stop | Upper limit stop preset but adjustable |
| Filter holder | On top of the illuminator |
| Transmitted illumination | Fixed Koehler LED 1W with intensity control |
| Illumination features | Nosepiece LED light intensity indicator |
| Transformer | Internal |
| Power supply | 110-240V (CE), USB 2.0 for battery pack |
| Other features | USB 2.0 for external camera power |
| Accessories included | Dust cover, power cord, Allen key |
| Dimensions LxWxH | 282x210x396mm |
| Net weight | 7.5kg |
