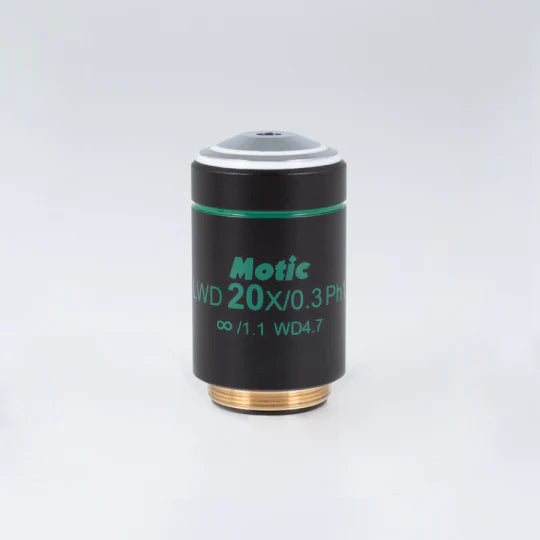

Motic LWD Phase 20X/0.30 Ph1 Objective, WD 4.7 mm | 1101001703102
Couldn't load pickup availability
Follow Us Online!
For an official Quote Email us at info@mundaymicroscope.com
International Buyers - Please Request Quote with ship to address
Have questions or need Faster Shipping? Call 919-775-5596
Infinity-corrected long-working-distance phase contrast objective for compatible AE-series inverted microscopes.
Key Specifications and Compatibility
- 20X magnification
- 0.30 numerical aperture
- 4.7 mm working distance
- Ph1 positive phase contrast
- 1.1 mm vessel-bottom correction
- AE31E and AE2000 compatibility
- Part number 1101001703102
Original Technical Details
CCIS Plan achromatic Phase objective LWD PL Ph 20X/0.3 (WD=4.7mm) Ph1 for AE31E Series and AE2000 Series
Specification
| Model |
CCIS® Plan achromatic Phase objective LWD PL Ph 20X/0.3 (WD=4.7mm) Ph1 |
| Objective mounting thread |
W 4/5"x1/36" (RMS standard) |
| Objective type |
Plan achromatic |
| Objective tube length |
Infinity CCIS® |
| Objective magnification | 20X |
| Objective N.A. | 0.30 |
| Objective W.D. | 4.7 mm |
| Objective DIN | 45mm |
| Objective coverglass thickness | 1.1 |
| Objective contrast technique | Phase contrast (Positive) |
| Valid for | AE31E Series, AE2000 Series |
Manufacturer Documentation
Motic official objective specifications and compatibility guide. Use the part number above to confirm the correct model.
